Rotating Feed Path 16 Pitch TS5000DMP DMP16R-10
Product Code: DMP16R-10
Price: £269.00
Description

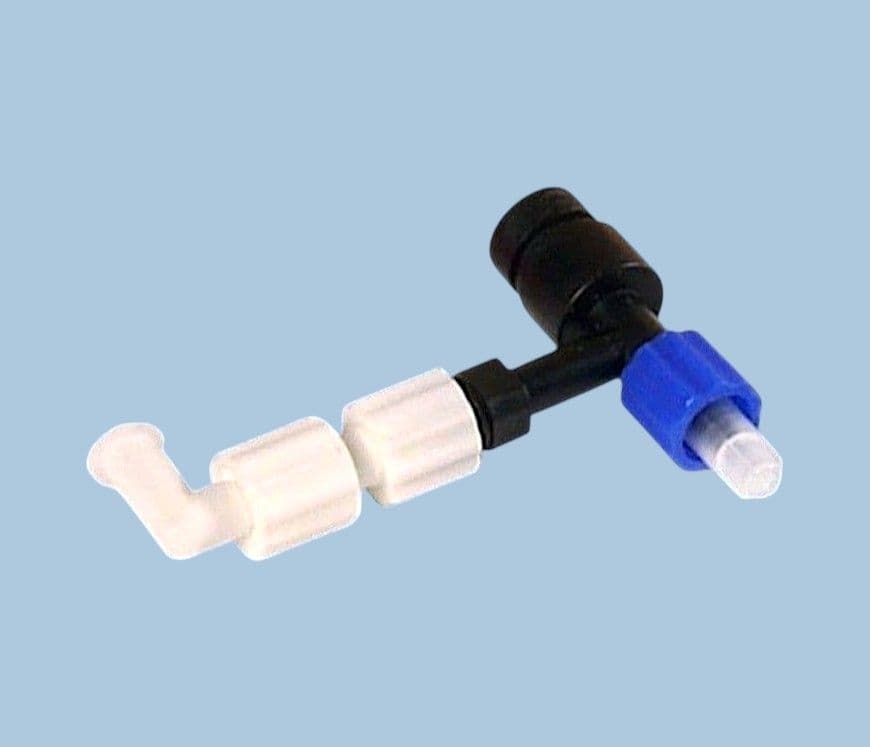

Replacement feed paths for use with TS5000DMP auger valve. Simple rapid changeover for maintenance free dispensing. 16 pitch size. High density Delrin. Fits into valve and allows for direct attachment of syringe barrel to feed material and dispense tip on the output.
Supplied pre-assembled in sealed packs of 10 fittings. Version with rotating blue luer lock collar.
Part ID: DMP16R-10
Size: 16 Pitch
Material: Delrin
Inlet: Female Luer Lock
Outlet: Male Luer Lock
Colour: Black/ White/ Blue
Pack Size: 10
Commodity Code: 39269097
Origin: USA
Brand: TSI
Data Sheet
The unique DMP (Disposable Material Path) Valve (TS5000DMP) offers a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of Delrin. The DMP Valve has a hinged doorway that opens easily so the disposable auger can be removed and replaced within seconds, while the line is still in operation, significantly reducing downtime and waste. The choice of left, right or centre hinge openings makes the valve suitable for mounting on most automated systems.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Supplied pre-assembled in sealed packs of 10 fittings. Version with rotating blue luer lock collar.
Size: 16 Pitch
Material: Delrin
Inlet: Female Luer Lock
Outlet: Male Luer Lock
Colour: Black/ White/ Blue
Pack Size: 10
Commodity Code: 39269097
Origin: USA
Brand: TSI
The unique DMP (Disposable Material Path) Valve (TS5000DMP) offers a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of Delrin. The DMP Valve has a hinged doorway that opens easily so the disposable auger can be removed and replaced within seconds, while the line is still in operation, significantly reducing downtime and waste. The choice of left, right or centre hinge openings makes the valve suitable for mounting on most automated systems.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Disposable feed path – no cleaning required
- Feed path can be changed in seconds
- Choice of 16 pitch, 8 pitch and 6 pitch feed screws
- Ideal for 2-part and abrasives fluids
- UV compatible
- Sealed box of 10
