Mix Nozzle 5mm ID x 18 EL MCH 05-18T pk/100
Product Code: MC05-18
Price: £73.00
Description

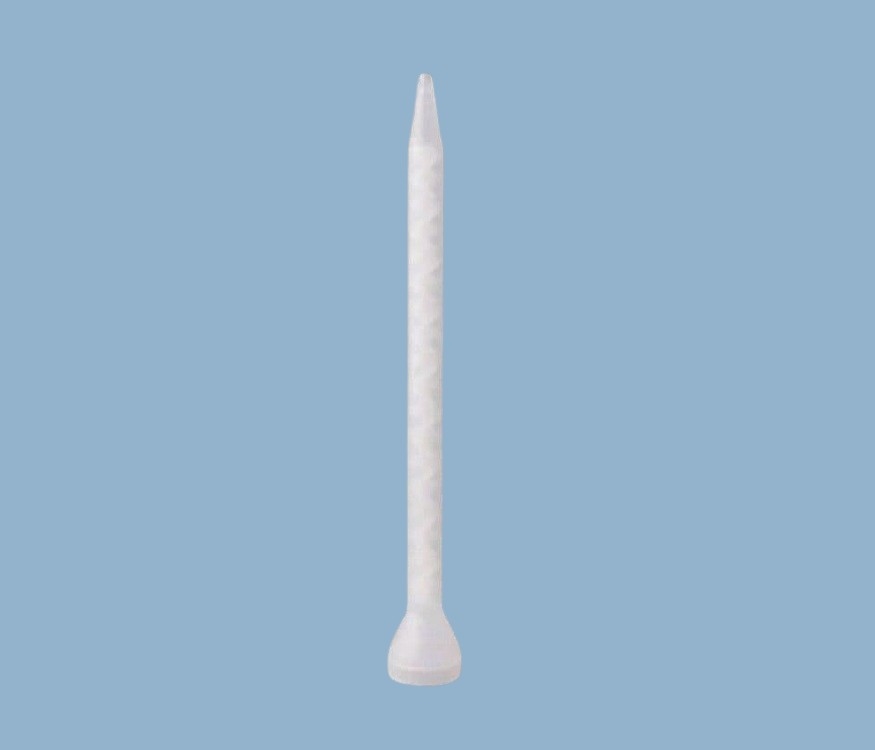

Helical round static mix nozzle with bell mouth housing for use with 200ml, 400ml and 600ml C-system dual 2K cartridges. The design of the push-on housing attachment allows the MCH range of mixers to be used with cartridge mix ratios 1:1 and 2:1 only. They can also be used on metering and mixing machines that run at lower than 7 BAR pressure. The nozzle simply pushes onto the cartridge outlet housing and uses the locking nut to secure.
The MCH Series mix nozzles have a round body design, white inner elements and are constructed of high-grade polypropylene materials. The outlet is the stepped design for standard dispensing or it can be cut down for higher material flow. MCH mix nozzles are industrial grade safe to 100 PSI and silicone-free materials. Material mix and flow is visible in this mix nozzle.
Benefits of the system is guaranteed mixing at the correct ratio every time. Controlled mixing and dispensing without added air entrapment. Cleaner than manual resin mixing and higher levels of dispensing control.
Part ID: MCH 05-18T - 102414
Body Material: High Density Polypropylene (DHPP)
Element Material: Medium Density Polypropylene (MDPP)
Colour: Natural Outer, White Element
Inner Diameter: 5.0mm
Outer Diameter: 8.0mm
Total Length: 122mm
Volume in Nozzle: 2.1ml
Number Of Elements: 18
For Mix Ratios: 1:1 and 2:1
Attachment: Bell Mouth Housing
Cartridge Type: For C-System (MCH) Cartridges
Outlet: Stepped
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: China
Brand: Sulzer Mixpac MedMix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Part ID: MCH 05-18T - 102414
Body Material: High Density Polypropylene (DHPP)
Element Material: Medium Density Polypropylene (MDPP)
Colour: Natural Outer, White Element
Inner Diameter: 5.0mm
Outer Diameter: 8.0mm
Total Length: 122mm
Volume in Nozzle: 2.1ml
Number Of Elements: 18
For Mix Ratios: 1:1 and 2:1
Attachment: Bell Mouth Housing
Cartridge Type: For C-System (MCH) Cartridges
Outlet: Stepped
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: China
Brand: Sulzer Mixpac MedMix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400/600ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
