30cc Manual Syringe Gun Dispenser JD927
Product Code: JG927
Price: £36.00
Description

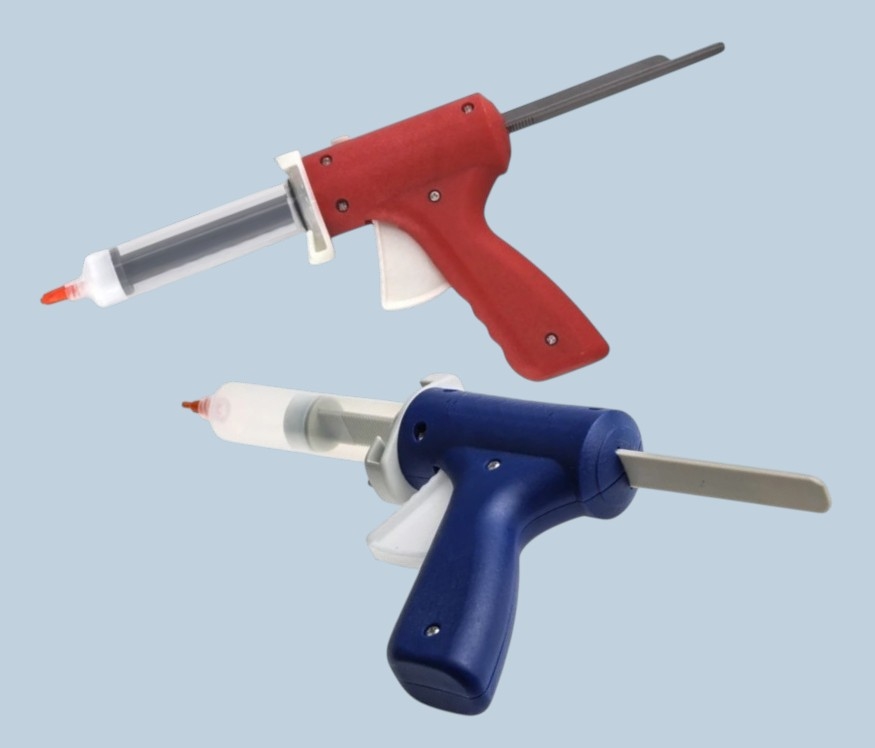

Syringe gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard 30cc/ 30ml size syringe barrels. Ideal for low volume production, re-work or repair work.
Syringe guns offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. A 7:1 ratio leverage for effortless trigger movement. The rod moves 3mm (1/8") once pressed to provide repeat deposits without drips or ooze.
Push the button to release plunger rod. Simple bayonet twist on/ twist off barrel attachment. Ideal for applying solder paste, solder flux, RTV, silicones, sealants, gels, greases, compounds, PVA glues and other liquids. Each Syringe Gun includes the 30cc manual hand gun, (1) 30cc natural dispensing reservoir with 30cc wiper piston, (1) storage end and tip caps, (1) dispensing tip.
Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure. This 30ml/ 30cc gun is also available conveniently supplied complete with our full component kit.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Syringe guns offer a low cost dispensing solution for most medium to high viscosity pastes, gels, silicones, greases and other liquids. A portable and lightweight manual dispenser for applying most fluids. A 7:1 ratio leverage for effortless trigger movement. The rod moves 3mm (1/8") once pressed to provide repeat deposits without drips or ooze.
Push the button to release plunger rod. Simple bayonet twist on/ twist off barrel attachment. Ideal for applying solder paste, solder flux, RTV, silicones, sealants, gels, greases, compounds, PVA glues and other liquids. Each Syringe Gun includes the 30cc manual hand gun, (1) 30cc natural dispensing reservoir with 30cc wiper piston, (1) storage end and tip caps, (1) dispensing tip.
Barrels are attached to the syringe gun using wide flanges. This ensures the barrel does not break under constant use or hand pressure. This 30ml/ 30cc gun is also available conveniently supplied complete with our full component kit.
Specifications:
MPN: JD927
Weight: 0.1kg/0.2lbs
Gun Length: 175.0mm
Maximum Thrust: 1.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 30mL (1oz)
Mechanical Advantage Ratio: 7:1
Viscosity: Low/Medium
Standard Colour: Grey/Blue
Commodity Code: 90289090
Materials: Polypro/ Nylon
Warranty: 1 Year
MPN: JD927
Weight: 0.1kg/0.2lbs
Gun Length: 175.0mm
Maximum Thrust: 1.5kN
Handle Material: Glass Filled Nylon
Frame Material: Glass Filled Nylon
Tool Component Approvals: REACH
Cartridge Capacity: 30mL (1oz)
Mechanical Advantage Ratio: 7:1
Viscosity: Low/Medium
Standard Colour: Grey/Blue
Commodity Code: 90289090
Materials: Polypro/ Nylon
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Includes syringe, piston, caps and tip
- Easy hand lever leverage
- Controlled deposit or bead
- Lightweight robust construction
- Quick syringe attachment
- Low cost dispensing solution
