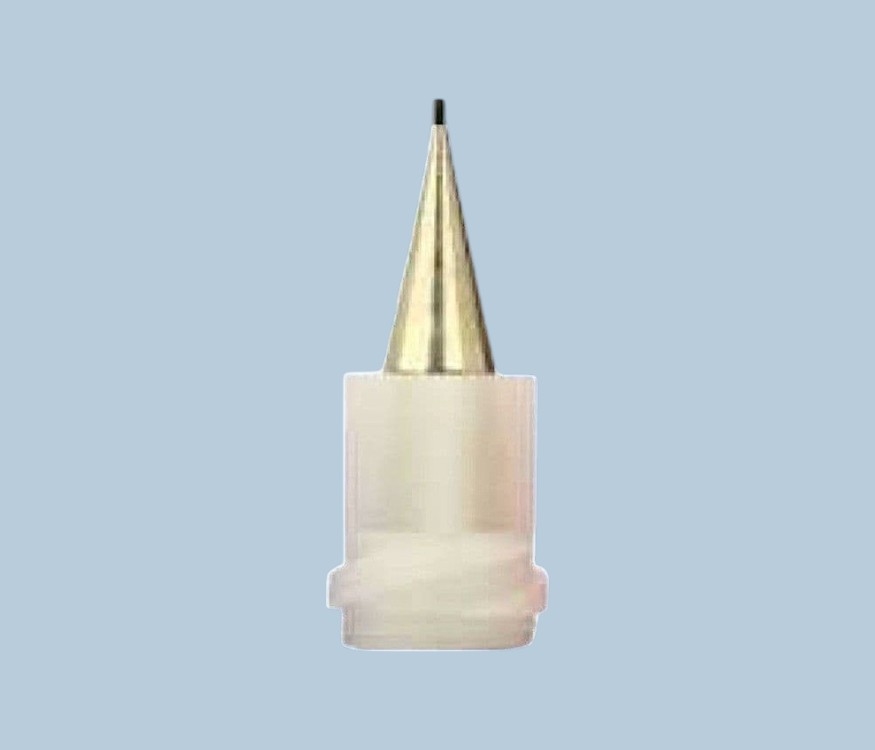

25G Micron S White Precision Tip 5901006 pk/8
Product Code: 5901006
Price: £155.20
Description
A primary design feature of this unique Luer lock dispensing nozzle is the stream-line conical fluid path which delivers substantially higher fluid flow rates and lower dispense pump back pressures, resulting in improved dispensing accuracy and component life. The design also employs very thin rigid walls offering a larger I.D. fluid path which enables the use of smaller O.D. nozzles without sacrificing dispense rates. Additionally, the thin walls further enhance the accuracy and definition of dots, lines, or special patterns while at the same time dramatically reducing fluid stringing or tailing tendencies. Part ID: 5901006 Gauge Size: 25 Material: (UNS C51000) Phosphor Bronze Plating: Electroless Nickel Colour: White Hub ID: 0.017" (0.437mm) OD: 0.020" (0.508mm) Details: Rated to 50 C (122 F) Maximum Pressure: 100 PSI Commodity Code: 90289090 Pack Size: 8
|
|
|
Features
- Micro precision dispense dots and lines to 50 microns
- Conical tapered convergent duct (optimized flow path)
- Repeatable precision
- Thin rigid metal construction
- Color coded hubs
- Secure Luer lock connection
- Precision solder paste deposition
- Precision close die tolerance underfill
- Medical precision
- MEMS
- Semiconductor packaging
- Automated micro-dispensing applications
- Re-usable hub option
- Precision machined accuracy
- Improved accuracy on robotic applications
- Dispense higher viscosities with lower pressures
- Resist clogging, improved fluid break off, no stringing
- A solution for proximity challenges
- Luer adaptation
