UV Adhesive Beading System 200-1215
Product Code: 200-1215
Price: £850.00
Description

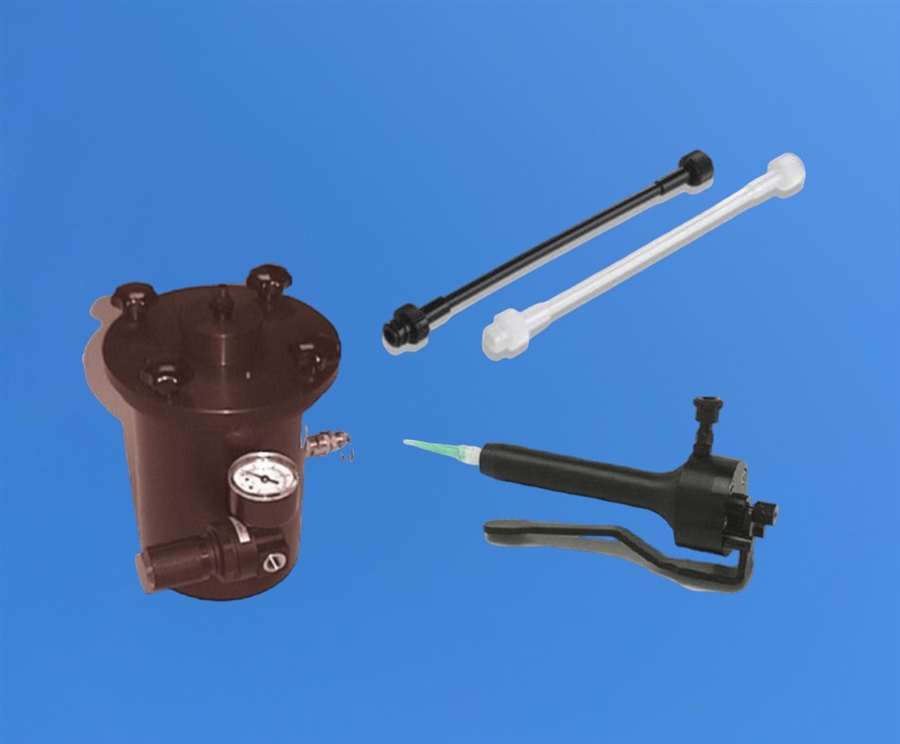

Complete dispensing system for handling low to medium viscosity fluids. Includes hand lever valve and 500 gram size pressure pot.
The
ADL-200CAM hand held diaphragm valve provides precise and continuous
micro shot applications
for a number of fluids. This low cost hand held valve is excellent for
most low to medium viscosity fluids. The gentle hand lever will open
the diaphragm
thus allowing fluids to flow accurately; when the lever is released
the diaphragm
will go back to the closed position and flow stops.
This
manual valve doesn't require
the use of a time/pressure dispenser. The control is by lever action
alone. An adjustable screw changes the stroke for increased or decreased
fluid flow.
The pressure pot allows for adhesive bottles up to 500gram size to be placed inside for direct flow to the valve. The tank features an adjustable 0-60 psi air regulator and gauge to set the most suitable flow rate.
The system is supplied with clear and black fluid lines, fluid inlet fitting TSD931-52 and tip adapter part TSD931-5. When the tip
is removed after use, a cap is provided to seal off the
end of the valve. Use the clear for most fluids and the black for UV cure adhesives.
Typical
fluids dispensed with this valve include Cyanoacrylate adhesives,
solvents, primers, activators, inks, paints, UV cureable adhesives and
many others. Do not use this valve for two-part epoxies or thick pastes.
A compressed air supply is required. The system will run from a small compressor.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- System ideal for handling CAs
- Tips and tubes will not clog
- Quick attach luer lock fluid lines
- Simple hand lever control
- Pressure pot with adjustable regulator and gauge
- Includes all parts to use straight out of the box
