Manual Four Pinch Valve Tank System 1201-1215-4
Product Code: 1201-1215-4
Price: £1,680.00
Description
Cyanoacrylate adhesive dispenser designed to accept a 500 gram bottle (1 lb) of instant adhesive. There is no pouring needed (ie: you drop your bottle of glue right into the dip-tube tank). Very little clean up is involved with this system and you do not smell the strong fumes of the glue as this is a contained system. The valve is designed to dispense thin and medium cyanoacrylates with controlled deposits of glue, with no dripping. The system has two ways to control the deposit: - needle tip size and tank pressure. The pressure on the tank can be adjusted and there is a 0-60 psi regulator gauge.

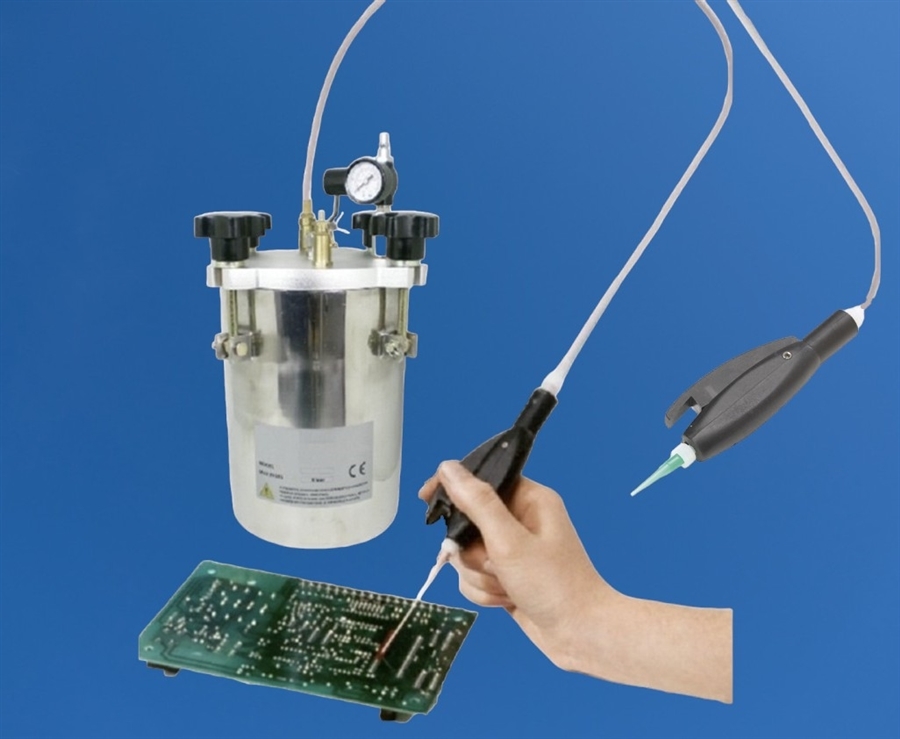

This version is for a system with four (4) hand pen valves, connected to a manifold and linked to the pressure pot. Adhesive is fed under pressure to each hand held valve which can be used together or one at a time. Can also be used with most low to medium viscosity adhesives, fluids, solvents and liquids.
Buying a CA adhesive in a 500g sized bottle can be cost effective. Applying adhesives by hand can be slow and often too much is applied to each part which can create mess, waste and possible damage to products. Or too little adhesive can be applied which creates a weak bond and product failure. With this system, the adhesive bottle is placed directly inside the compact tank unit and fed under very low air pressure down flexible feed tubing to the hand held pinch tube valve. For CA's, dispensing tips supplied are Teflon lined to prevent rapid clogging of the adhesive. Using Teflon tips allows the operator to dispense without it blocking too quickly in between breaks or them having to replace tips too often.
This two operator dispensing system will ship with a starter stock of Teflon tips, tip caps and fluid lines. The only requirement for this system is a compressed air supply of 50-60 psi. We recommend that the air supply is filtered against moisture. We supply low cost 5-micron filters (part TSD800-6).
Part ID: 1201-1215-4
Tank Unit: Up to 500g size
Time Range: n/a - manual control
Cycle Rate: n/a - manual control
Minimum Shot Size: n/a - manual control
Viscosity Range: 1-45,000 CPS
Warranty: 1 Year
Commodity Code: 90289090
Features
- System ideal for handling CAs
- One, two, three or four operator system
- Includes liquid manifold
- Tips and tubes will not clog
- Quick attach luer lock fluid lines
- Simple hand lever control
- Pressure pot with adjustable regulator and gauge
- Includes all parts to use straight out of the box
