6oz syringe barrel filling station Adhesive Dispensing

Description

An efficient method of transferring greases, epoxies, silicones, solder pastes and other thixotropic materials into a disposable syringe barrel. This barrel loader is supplied with a pneumatic adjustable timed benchtop dispenser to control the operation.

The model 1000-6D barrel loader is for pre-filled 6oz (177cc/ 177ml) industry cartridges, which are placed inside a sealed container mounted on the stand. The barrel attachment assembly is threaded to accept luer lock barrels. Activating the pneumatic dispenser once connected to the air line causes the material to rise inside the barrel. This method simplifies loading and reduces the possibility of entrapped air in the fluid.

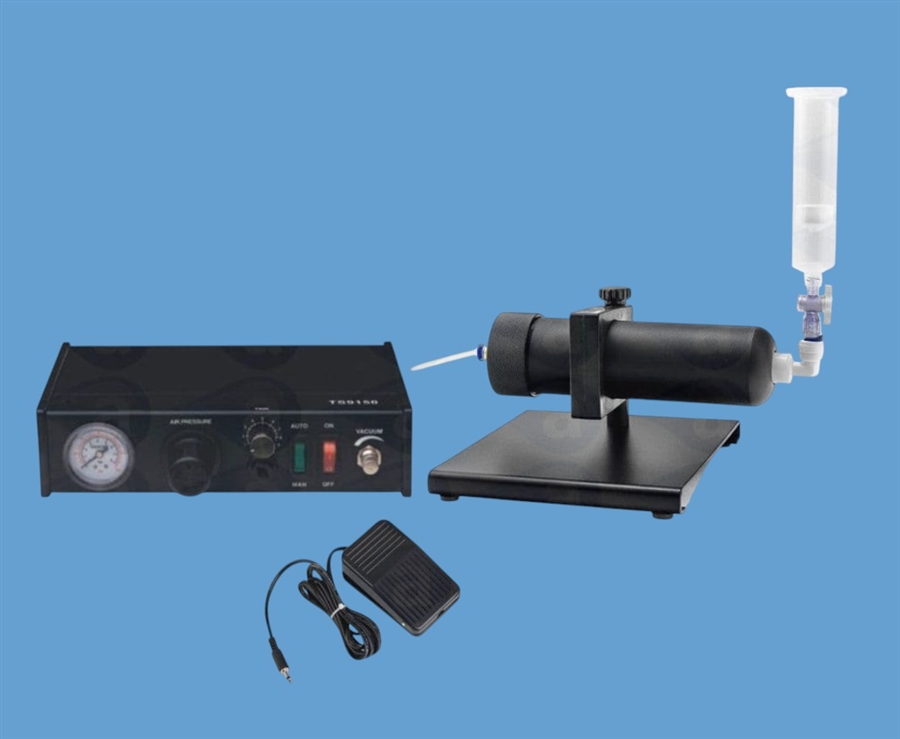

The 1000-6D includes pneumatic bench mounted dispenser with 0-100 psi adjustable regulator/ gauge, benchtop cartridge base stand, retainer bracket support, 6oz retainer and air cap, five (5) empty 6oz cartridge and plungers, an outlet cap and special barrel attachment assembly. The 6oz (177cc/ml) cartridges are filled with material of choice.

The digital dispenser controlling this system allows timed filling to each syringe barrel to eliminate guesswork and improve repeatibility. This system is operated by electric foot switch (supplied).

Part ID: 1000-6D
Materials: Polyethylene/ Steel/ Nylon
Capacity: 6oz/ 177cc or 177ml
Weight: 4kg
Max Pressure: 100 PSI
Warranty: 12 Months

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

For 6oz cartridges
Includes adjustable bench mounted timed pneumatic dispenser
Bottom fills syringes to reduce air
Supplied with components
Safe for use up to 100 psi
Quick and easy setup
Industrial grade safe
For pastes, gels, silicones and sealants

6oz Digital Timed Syringe Filling Station 1000-6D

6oz Digital Timed Syringe Filling Station 1000-6D
