Description
An efficient method of transferring greases, epoxies, silicones, solder pastes and other thixotropic materials into a disposable syringe barrel. This barrel loader is supplied with a pneumatic adjustable timed benchtop dispenser to control the operation.
The model 1000-8D barrel loader is for pre-filled 8oz (237cc/ 237ml) industry cartridges, which are placed inside a sealed container mounted on the stand. The barrel attachment assembly is threaded to accept luer lock barrels. Activating the pneumatic dispenser once connected to the air line causes the material to rise inside the barrel. This method simplifies loading and reduces the possibility of entrapped air in the fluid.

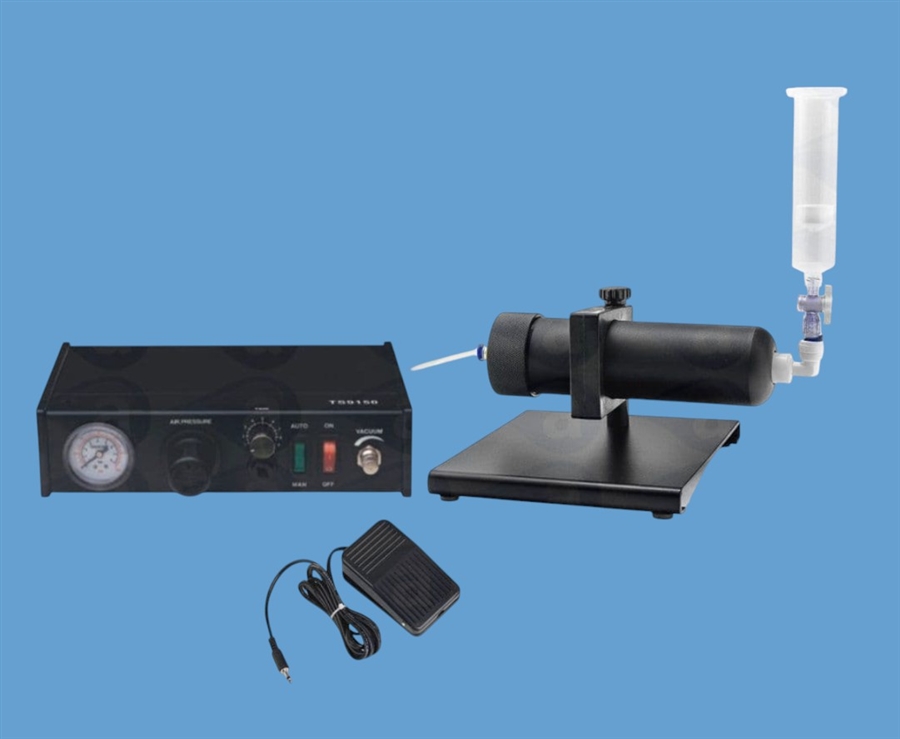

The 1000-8D includes pneumatic bench mounted dispenser with 0-100 psi adjustable regulator/ gauge, benchtop cartridge base stand, retainer bracket support, 6oz retainer and air cap, five (5) empty 8oz cartridge and plungers, an outlet cap and special barrel attachment assembly. The 8oz (237cc/ml) cartridges are filled with material of choice. The digital dispenser controlling this system allows timed filling to each syringe barrel to eliminate guesswork and improve repeatibility. This system is operated by electric foot switch (supplied).
Part ID: 1000-8D
Materials: Polyethylene/ Steel/ Nylon
Capacity: 8oz/ 237cc or 237ml
Weight: 4kg
Max Pressure: 100 PSI
Warranty: 12 Months
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- For 8oz cartridges
- Includes adjustable bench mounted timed pneumatic dispenser
- Bottom fills syringes to reduce air
- Supplied with components
- Safe for use up to 100 psi
- Quick and easy setup
- Industrial grade safe
- For pastes, gels, silicones and sealants
