Desktop 4 axis robot 200mm x 200mm adhesive dispensing janome

Description

Robots provide precise control over adhesive placement, from exact beads, to repeat timed dots or potting of components. Programming is simple via a teach pendant. Even complex patterns can be created quickly. Storage is to internal flash memory allowing for up to 255 programs to be created.

High speeds are achieved reducing time spent hand applying adhesives. Accuracy of placement and volume of fluid ensures zero waste, mess and error. Robots will dispense most materials including adhesives, pastes, epoxies, gels, silicones, sealants, RTV's, oils, grease, anaerobics, cyanoacrylates, inks and lubricants.

The J2204 robots have a maximum base work area of 200mm x 200mm. In 4 directional indexing. 4 axis for 360 degree head rotation (R) to dispense to the sides of components, inside or around the outside of products. All robots are supplied with a digital syringe controller, I/O cable, CE compliance start/ stop box, teach pendant. Please note the JR 2000 series has been replaced by the JR 3000 series.

X axis/200mm Y axis/200mm Z axis/50mm R axis/ ± 360º
Worktable load / Tool: 7 kg. / 3.5 kg.
Speed PTP: 5-500 mm/sec X&Y, 2.5-250mm/sec Z
Speed CP: 0.1-500mm/sec XY & 0.1-250mm/sec Z
Repeatability: +/- 0.01mm
Resolution: 0.01mm/ Axis
Data Memory: 255 Programs - 30,000 points
Drive Sys. / Stepping motor: 5-phase micro stepping motor
Operation system: Point To Point and Continuous Path
Interpolation: XYZ simultaneous (CP) 3D linear interpolation
Teaching method: Remote & Manual Data Input (MDI) teaching
CPU: 32 bit (MC68EC020, MC68882)
PLC: 50 programs, 100 steps for each program
I/O signals: 16 input & 16 output signals
External Interface: USB / RS232
Working temperature: 0 - 40º C
Relative humidity: 20 – 95% no condensation
Power Supply: AC 110V, AC 180-250V
Dimensions (WxDxH): 320x 665 x 377
Weight: 42 lbs (18 kg)

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Applications

	Dotting
	Beading
	Potting
	Bonding
	Sealing
	Lubricating

Features

Ideal for form-in-place gaskets, adhesives, potting, coating and filling
High resolution 0.001mm
Performs continuous path and point-to-point motions
Quick fluid-purge button located on front panel
Software tip alignment routine for quick program offsets when changing dispensing tips
USB connector allows system updates and program interchange between robots
Step-and-repeat functions _ program one object only for multiple identical objects
On board 255 programs, 30,000 point memory capacity
Available without Teach Pendant for multiple installations
1 Year Warranty - CE Certified

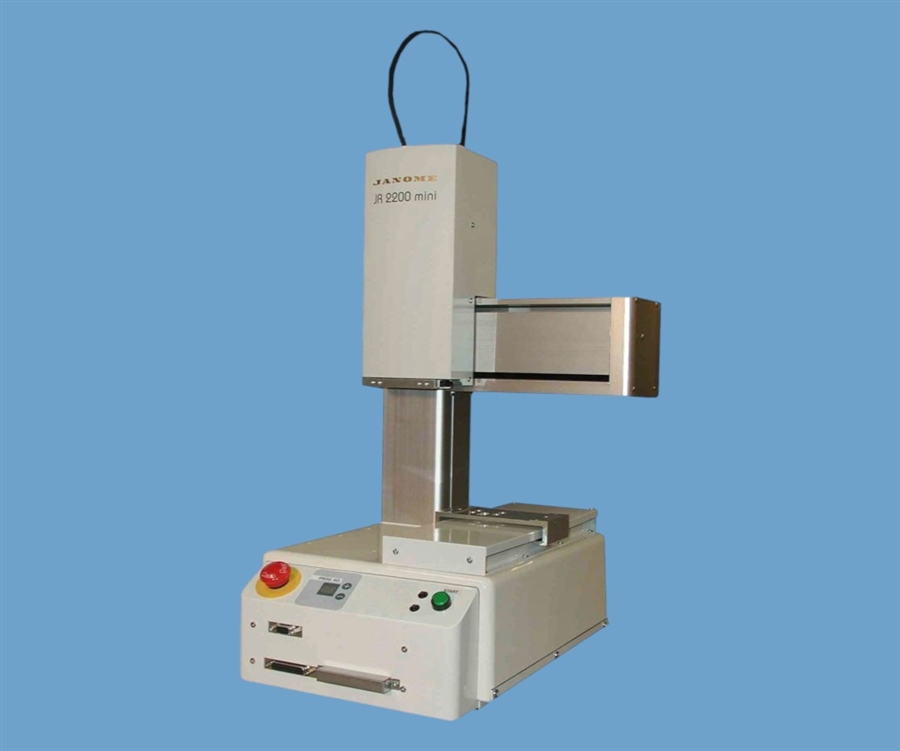

4 Axis Robot 200mm x 200mm x 50mm J2204
