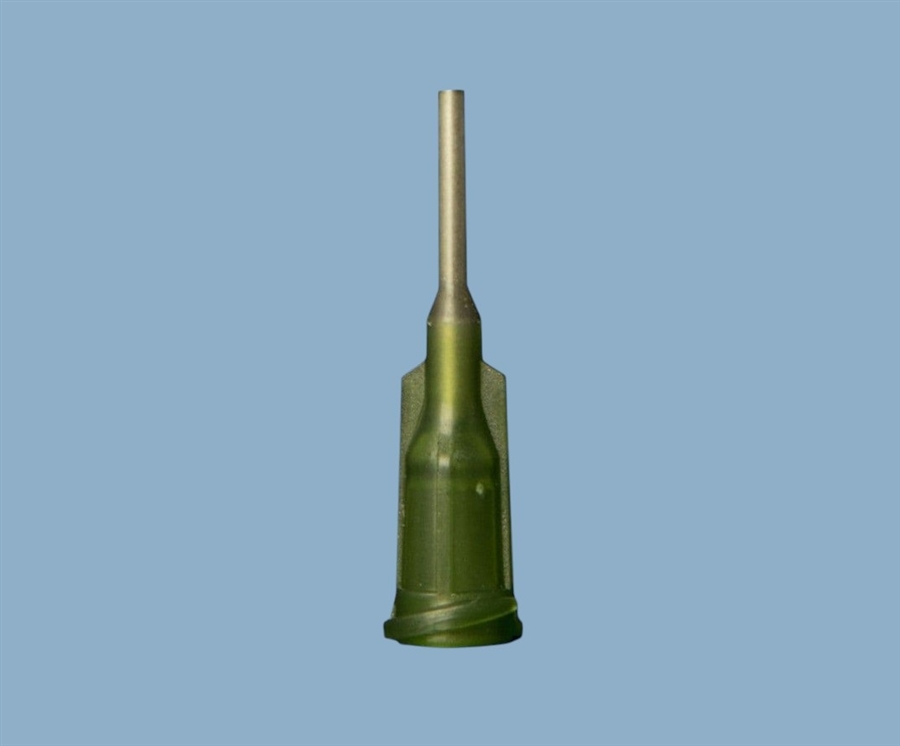

14 Gauge 0.5" Long Tip Olive 5601084 pk/25
Product Code: 5601084
Price: £6.00
Description
Premium dispensing tips are designed to work with all dispensing equipment - either manually, on a pneumatic dispenser, with metering valves or XYZ robots. Dispensing tips are certified silicone and chloride free and are safe to use to 100 PSI. High performance tips suitable for dispensing most fluids, pastes, adhesives, lubricants and solvent based liquids.
Tip range features a tapered internal design where the stainless steel tube meets the inside of the polypro hub to improve material flow and reduce restriction and back pressure. This allows for a lower pressure to be used for dispensing liquids and pastes. The tube does not protrude up into the hub which will guarantee easy flow.
Dispensing components ensure accuracy, repeatability and productivity. General purpose tips are in gauge sizes from 12 to 34 (2.26mm ID to 0.08mm ID) and in tube lengths of 0.25" (6.35mm), 0.50" (12.70mm), 1.0" (25.4mm), 1.5" (38.1mm) and 2.0" (50.8mm). We even have the option to make 3.0" and 4.0" custom length tips on request. Tips use the industry standard colour coding for easy identification. Hubs have a UV filter to reduce the affects of light.
General purpose blunt tips are supplied in sealed boxes of 25 for easy stacking or in bulk value packs of 500 or 1000. All products are held in stock for very fast delivery. Boxes and packs are labelled with batch codes for traceability. We ship these parts globally to manufacturers, assemblers who demand the very highest build quality and the best value. This tip is held in stock for immediate dispatch.
Material: Polypropylene Hub/ Stainless Steel Tube
Hub Colour: Olive
Tube Inner Diameter: 0.060" - 1.55 mm
Tube Outer Diameter: 0.072" - 1.83 mm
Tube Length: 0.5" (12.7mm)
Details: Industrial Grade, Silicone Free, Chloride Free, Burr-Free
Brand: Adhesive Dispensing Ltd
Pack Sizes: Boxes of 25
Commodity Code: 90289090
Hub Colour: Olive
Tube Inner Diameter: 0.060" - 1.55 mm
Tube Outer Diameter: 0.072" - 1.83 mm
Tube Length: 0.5" (12.7mm)
Details: Industrial Grade, Silicone Free, Chloride Free, Burr-Free
Brand: Adhesive Dispensing Ltd
Pack Sizes: Boxes of 25
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Precision burr free tubing
- 0.5" tube lengths
- Silicone free safe plastics
- Safe for use up to 100 psi
- Double helix luer lock colour coded hubs
- UV filter plastic hubs
- For all fluids, adhesives and solvents
