Description
A multi purpose evaluation pack of Teflon dispensing tips. 8 different gauge sizes of colour coded 0.5" long tips from 14 to 30 GA. Supplied in a sealed pack of 16 tips. The Teflon Lined Tip is suited to the controlled application of Cyanoacrylates, Solvents, Activators, Primers and other liquids.
Dispensing tip with flexible "see-thru" clear tube and threaded
luer lock colour coded hub for secure attachment to syringe barrels or
dispense valves. Ideal for use with Cyanoacrylates and other low
viscosity liquids as adhesives will not stick to the tube or clog. The
clear shaft allows fluid flow to be seen. Total tip length including hub of 1
3/16" (30mm). Threaded polypropylene hub with Teflon shaft.

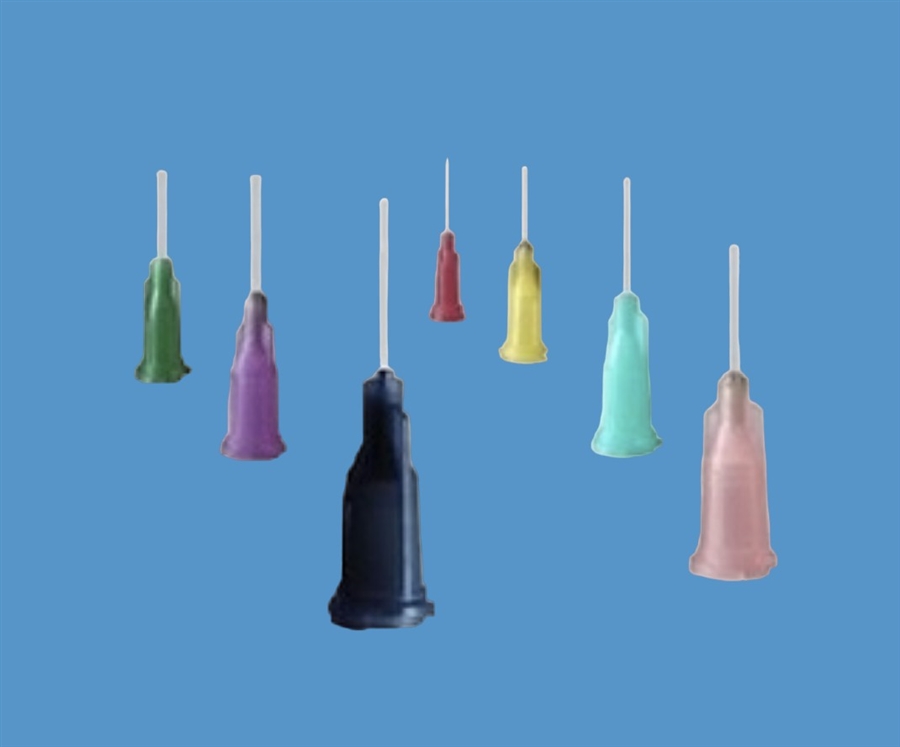

Part ID: SA7955 contains the following: -
14 Gauge Olive 0.5" 0.066"
x 2
16 Gauge Purple 0.5" 0.053"
x 2
18 Gauge Pink 0.5" 0.042"
x 2
20 Gauge Yellow 0.5" 0.034" x
2
22 Gauge Black 0.5"
0.028" x 2
23 Gauge Blue 0.5" 0.026" x 2
24 Gauge Red
0.5" 0.022" x 2
30 Gauge Lavender 0.5"
0.012" x 2
Tips are supplied in sealed and labelled packs.
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Prevents Cyanoacrylate clogging
- Prevents damage to substrates
- Compatible with wide range of fluids
- Industrial safe to 100 psi
- Silicone and Chloride free
- Precision see-thru Teflon tube
- Double helix luer colour coded hubs
