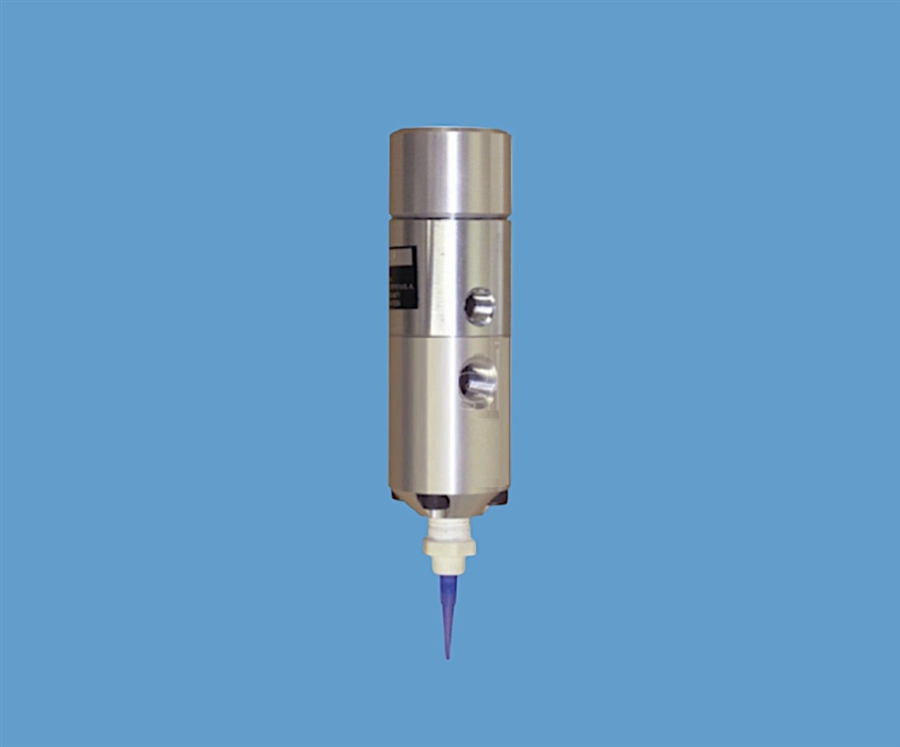

Sealant & Grease High Pressure Valve 790HP-LF
Product Code: 790HP-LF
Price: £595.00
Description
Designed to dispense viscous materials fed from cartridges or pumps. The 790HP-LF is a spool design for a fast ON/OFF dispensing action unaffected by material input pressure, and is ideal for material with a viscosity between 5000 to 3,000,000 CPS at pressures of up to 2,500 psi.
The hardened spool slides in PTFE seals and displaces a portion of the material back into the nozzle during shut off, creating an accurate suck-back anti-drip action. An oil chamber creates an additional liquid seal that prevents inadvertent moisture from entering the spool mechanism.
The valve is opened by applying air pressure and closed via a return spring (single acting). A port is provided so that the valve may be connected for air closing without the spring (double acting).
All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, mounting attachment, tip cap end seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty.
Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates or other low viscosity liquids. For high viscosity materials only.
Part ID: 790HP-LF
Materials: Aluminium, Teflon
Length: 4.70" (119mm)
Diameter: 1.50" (38mm)
Weight: 1.16lb (726g)
Viscosity Range: 5,000 to 3 Million CPS
Repeatability: ±1.28%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 39,000 ml / minute @ 100 psi
Min Shot Size: 0.14 cc / ml
Max Fluid Pressure: 2500 psi (172.4 bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/4"
Material Outlet: 1/4"
Mounting: 1.5" (38mm) diameter
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The hardened spool slides in PTFE seals and displaces a portion of the material back into the nozzle during shut off, creating an accurate suck-back anti-drip action. An oil chamber creates an additional liquid seal that prevents inadvertent moisture from entering the spool mechanism.
The valve is opened by applying air pressure and closed via a return spring (single acting). A port is provided so that the valve may be connected for air closing without the spring (double acting).
All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, mounting attachment, tip cap end seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty.
Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates or other low viscosity liquids. For high viscosity materials only.
Part ID: 790HP-LF
Materials: Aluminium, Teflon
Length: 4.70" (119mm)
Diameter: 1.50" (38mm)
Weight: 1.16lb (726g)
Viscosity Range: 5,000 to 3 Million CPS
Repeatability: ±1.28%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 39,000 ml / minute @ 100 psi
Min Shot Size: 0.14 cc / ml
Max Fluid Pressure: 2500 psi (172.4 bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/4"
Material Outlet: 1/4"
Mounting: 1.5" (38mm) diameter
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- High-pressure fluid input up to 2500 psi
- Suitable for very high viscosity fluids Aluminum Suck-Back eliminates post-dispense "dripping"
