Description

Poppet valves are multipurpose valves suitable for small shots and bead dispensing of medium or high viscosity fluids such as silicones, grease and paste. Poppet valves can dispense up to 300 times per minute and are developed with a suck-back feature to prevent post-dispense dripping.

Developed for dispensing silicone, grease, RTV, single part epoxy, and fluid with fillers. A diaphragm located between the driving parts and the wetted parts increases the valve life and reduces valve maintenance. The valve design also provides a suck-back effect which prevents post-dispense dripping.

The VP300 Poppet Valve is a multipurpose pneumatic valve developed for dispensing low to medium viscosity materials such as silicone, RTV, epoxy, rubber adhesives, greases, and fluids with fillers.

The VP300 can be used with the DSP501N Controller. For faster activation of the valve, the VC-1195A Valve Controller is recommended.

All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, tip cap end seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.

Operating Air Pressure: 60-90 PSI
Cycle Rate: 300 cycles/min (half stroke)
Minimum Shot Size: 0.05cc
Maximum Flow Rate: 2.4 Liters/min Valve
Weight: 285g
Driving part materials: Body: AL Hard Anodizing (Black) Piston, Rod: SUS303 Piston Seal: NBR
Wetted part materials: Chamber: AL Hard Anodizing (Black) CAP: AL Hard Anodizing (Black) Diaphragm: UHMW-PE Valve Seat: UHMW-PE O-Ring (CAP): Fluorocarbon Rubber
Operating Air Inlet: M5xP0.8
Material Inlet: BSPT1/8"
Mounting Hole: M5xP0.8*DP 8
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Suitable for dispensing adhesives, oils, greases, lubricants, and filled materials
Designed for bead laying, potting, filling, and dot laying applications
Stroke adjustment feature provides precise shot size control
Suck-Back feature eliminates post-dispense "dripping"

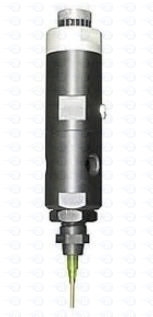

Air Operated Poppet Valve Part VP300
