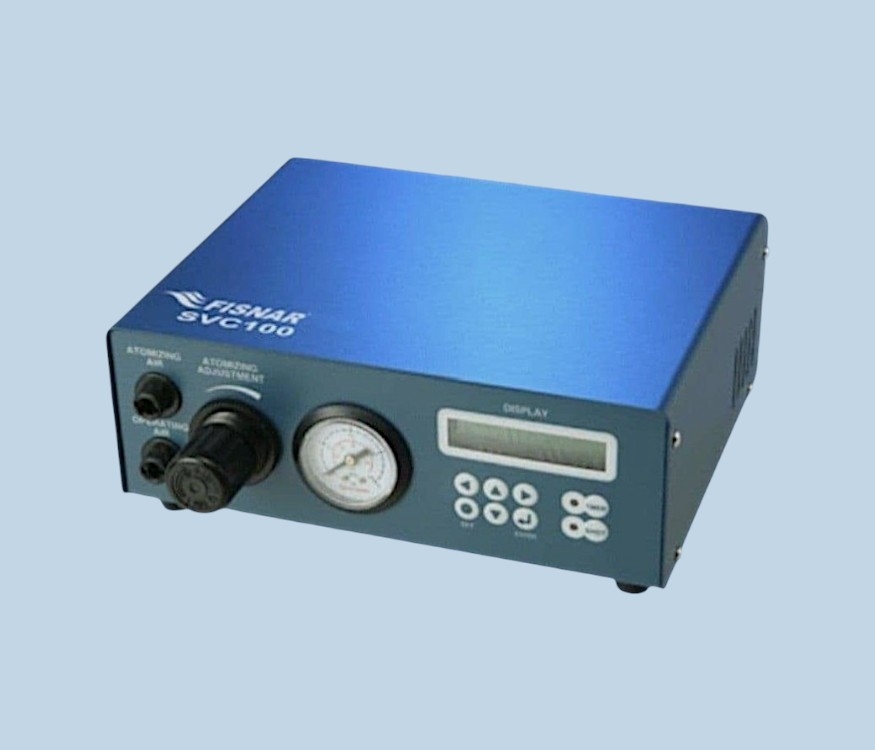

Digital Timed Spray Valve Controller Model SVC100
Product Code: SVC100
Price: £1,150.00
Description
The SVC100 is a programmable spray valve controller designed to control spray valves. The SVC100 programming provides the clean
spray adjustment necessary for spraying paint, flux, urethane,
lubricants, and for coating and conformal coating operations.
This system uses a highly responsive air pressure management system, coupled with a digital timing circuit and display, to provide consistent, repeatable control over all types of valves.
External dimensions: 9.05 x 7.32 x 3.54 (230 x 186 x 90mm)
Weight: 6lbs (2.73kg)
Power input Model SVC100-220: AC 220V 50-60Hz
Power input Model SVC100-110: AC 110V 50/60Hz
Dispensing pressure: 0-6kg/cm2
Dispensing time: 0.001 sec - 99.99 second adjustable
Dispensing selection: LCD digital display
Input/output signal: Open connector, 24VDC (selector by change)
Commodity Code: 90289090
Warranty: 1 Year
This system uses a highly responsive air pressure management system, coupled with a digital timing circuit and display, to provide consistent, repeatable control over all types of valves.
External dimensions: 9.05 x 7.32 x 3.54 (230 x 186 x 90mm)
Weight: 6lbs (2.73kg)
Power input Model SVC100-220: AC 220V 50-60Hz
Power input Model SVC100-110: AC 110V 50/60Hz
Dispensing pressure: 0-6kg/cm2
Dispensing time: 0.001 sec - 99.99 second adjustable
Dispensing selection: LCD digital display
Input/output signal: Open connector, 24VDC (selector by change)
Commodity Code: 90289090
Warranty: 1 Year
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Atomising pressure before and after fluid flow
- Touch sensitive key pad
- Anti-clog feature controls
- Sequence timing control
