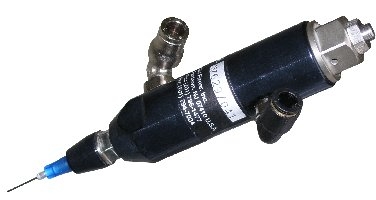

CV629 Cartridge Valve

Description

The CV629 is a multipurpose dispensing valve designed for high cycling automated dispensing applications. The internal cartridge seal makes the CV629 suitable for dispensing solvents, oils, silicones, glues, and other medium viscosity materials.

Suited to repeat deposits, controlled lines or potting and can be operator controlled or linked to an automated assembly process using a controller. This valve is designed to apply shots without drips. The valve design is vertical with fluid flow from the side either by syringe, cartridge or fluid line feed (from pressure pot). Always use our black fluid lines or feed tubing when dispensing UV cure adhesives.

The CV629 Valve is a pneumatically operated valve designed for precision dispensing of liquids, such as solvents, oils, silicones, adhesives, UV adhesives, inks, etc. The system can be integrated into an automatic dispensing robot or used as a fixed bench-mounted dispensing valve. Since it has a light weight design, it can be used hand-held. It is suitable for high cycling, automated dispensing applications.

The valve is opened by air pressure and closed by a return spring when air pressure is released. Applying a minimum of 70 psi (5 bar) air pressure to the air inlet will open the valve. Fluid is supplied to the material inlet through a 1/8 BSPP threaded port.

Shot sizes may be fine tuned by turning the adjustment screw at the top of the valve; hence the CV629 valve is recommended for applications where micro deposits are required. Shot size and flow rate are controlled by the tip size, fluid pressure and the duration that the valve is open.

The model TS250 is a suitable controller for the CV629 valve. Maintenance is straightforward, as the seals are in a easily replaceable cartridge.

All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, tip cap end seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.

Part ID: CV629
Wetted Materials: Stainless Steel, Anodise Aluminium, Teflon
Min Shot Size: 0.01 cc/ ml
Max Fluid Pressure: 300 psi (21 bar)
Weight: 135g
Activation Pressure: 70 to 85 psi (5 to 6 bar)
Air Inlet: M5 thread w/ push-in fitting for 6mm OD tube
Material Inlet: 1/8 BSPP w/ push-in fitting for 6mm OD tube
Material Outlet: Luer lock adapter
Warranty: 1 Year

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Suitable for dispensing solvents, oils, silicones, and glues
Air and material inlets are aligned for side-by-side mounting of multiple valves
Stroke adjustment to fine-tune shot size
Replaceable cartridge seals
Designed to deliver precise Microshot deposits
