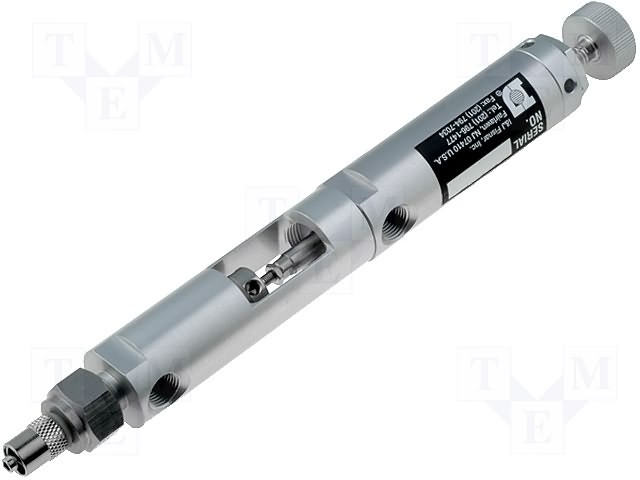

Air Operated Needle Valve S/S MV-0180SS
Product Code: MV-0180SS
Price: £804.59
Description
The MV-0810SS needle valve is designed for dispensing micro-liter sized
shots of adhesives, solvents, alcohols, and other low viscosity
materials. The pencil-type grip makes the valve suitable for either
hand-held or bench applications. Shot sizes may be fine tuned by turning
the adjuster at the top of the needle valve.
Suited to repeat deposits, controlled lines or potting and can be operator controlled or linked to an automated assembly process. This needle valve is designed to apply micro shots without drips. The valve design is vertical with fluid flow from the side either by syringe, cartridge or fluid line feed (from pressure pot). Always use black fluid lines or feed tubing when dispensing UV cure adhesives.
All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, mounting attachment, tip cap end seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.
Part ID: MV-0180SS
Wetted Materials: Stainless Steel, Anodise Aluminium, Teflon
Min Shot Size: 0.01 cc/ ml
Max Fluid Pressure: 100 psi
Activation Pressure: 85 to 95 psi minimum
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Suited to repeat deposits, controlled lines or potting and can be operator controlled or linked to an automated assembly process. This needle valve is designed to apply micro shots without drips. The valve design is vertical with fluid flow from the side either by syringe, cartridge or fluid line feed (from pressure pot). Always use black fluid lines or feed tubing when dispensing UV cure adhesives.
All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, mounting attachment, tip cap end seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.
Part ID: MV-0180SS
Wetted Materials: Stainless Steel, Anodise Aluminium, Teflon
Min Shot Size: 0.01 cc/ ml
Max Fluid Pressure: 100 psi
Activation Pressure: 85 to 95 psi minimum
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Suitable to dispense adhesives, solvents, and alcohols
- Available in Stainless Steel and Plastic
- Stroke adjustment to fine-tune shot size
- Lightweight design for hand-held dispensing
- Engineered for micro-shot deposits
