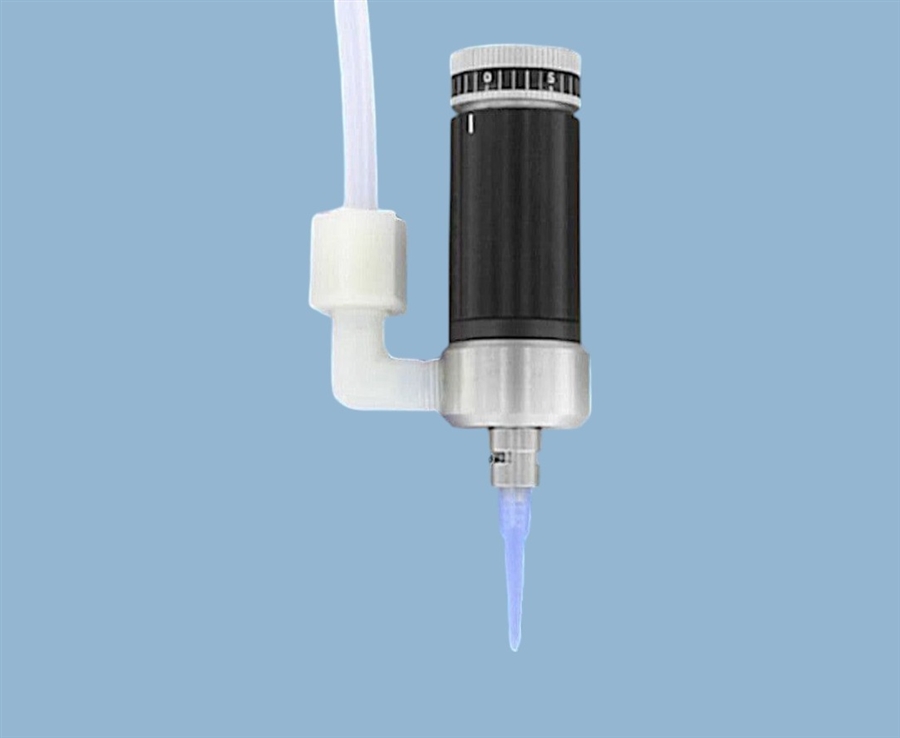

Air Operated S/S Diaphragm Valve Part VD520-SS
Product Code: VD510-SS
Price: £695.00
Description
The VD520 Series dispense valves accurately control the application of most low to medium viscosity fluids without drips. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve. The adjustable open/close stroke 0.13 to 0.64 mm (0.005" to 0.025") allows for a very fast response with positive shutoff.
Wetted components are made of inert plastic and stainless steel. Takes a direct feed from any pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors.
Valve open time can be as short as 15 milliseconds.
This version has a stainless steel fluid housing making it ideal for dispensing UV cure adhesives, lubricants and oils. Model VD520-SS with PTFE polymer and stainless steel wetted parts is used for dispensing solvents, gels, UV cure, liquids and glues. Simple to use with TS550R, TS250, TS350 digital timed controllers.
SPECIFICATIONS
Material Delivery Pressure: 100 psi max
Flow Rate Maximum: 0.3 l/min
Valve Body: Aluminum/ SS
Valve Piston: SUS303
Valve Piston Seal: NBR
Wetted Part Materials:Stainless Steel, PTFE
Air Input: M5 x 0.8
Material Inlet: 1/8” NPT
Material Outlet: Luer Lock
Mounting Hole Detail: M5 x 0.8
Weight (VD510-SS): 121g
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for aggressive liquids High precision solution supplied complete
- Repeat dots, lines or potting of most liquids
- Adjustable stroke control for fine tuning of flow
- Syringe feed, cartridge feed or pressure pot
- Supplied with fluid lines and tip kit
- Easy bench mount, machine mount or robot mount
- Simple to control using TS550R, TS250 or TS350
- 1 Year Warranty
