3cc Clear Barrel Blue Piston AD903-NEF pk/50
Product Code: 903-NEF
Price: £28.00
Description
Adhesive Dispensing Ltd branded 900 Series premium dispensing components are silicone and chloride free and designed to work with industry standard equipment. 900 Series dispensing components ensure accuracy, repeatability and productivity. Barrel size options of 3cc, 5cc, 10cc, 30cc and 55cc. Use these components for controlled dispensing of pastes, gels, adhesives, liquids, solvents, inks, paints, solder pastes, flux pastes, liquid flux, water based glue, Cyanoacrylate, Anaerobic Threadlock and many more assembly fluids.
900 Series Syringe Barrels
Unique ultra-low draft construction of inner diameter yields high accuracy and stability. They are comprised of industry compliant silicone and chloride free, low friction polypropylene. Available in three different colours: Natural for most generic applications, amber provides protection of UV/visible light block (up to 520nm), but with the ability to see material inside the barrel; and black for total light block. Supplied in bulk packs and packs of 50.
Unique ultra-low draft construction of inner diameter yields high accuracy and stability. They are comprised of industry compliant silicone and chloride free, low friction polypropylene. Available in three different colours: Natural for most generic applications, amber provides protection of UV/visible light block (up to 520nm), but with the ability to see material inside the barrel; and black for total light block. Supplied in bulk packs and packs of 50.
900 Series Syringe Barrel Kits

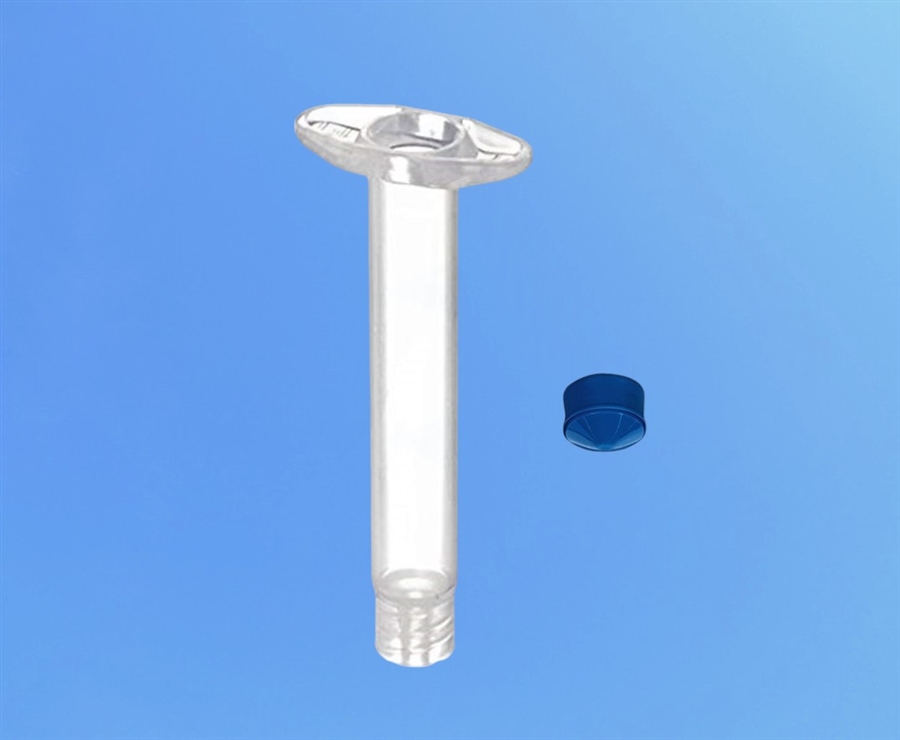

For your convenience these syringe barrels and blue easy flow wiper pistons are packaged together without pistons inserted. Supplied in packs and packs of 50 of each part. Part AD903-NEF contains both barrel and piston. Natural (clear) barrels for most generic applications. Maximum operating pressure is 100 psi (6.9bar). Blue polyethylene easy flow pistons for use with all fluids are supplied in the same box.
For your convenience these syringe barrels and blue easy flow wiper pistons are packaged together without pistons inserted. Supplied in packs and packs of 50 of each part. Part AD903-NEF contains both barrel and piston. Natural (clear) barrels for most generic applications. Maximum operating pressure is 100 psi (6.9bar). Blue polyethylene easy flow pistons for use with all fluids are supplied in the same box.
900 Series Air Powered Pistons
Spread the pressure evenly across, using a piston for consistent dispensing of even high viscosity material. Easy flow pistons (blue) require less pressure to dispense and prevent air from becoming entrapped during the dispense process. Supplied in packs of 50. Made from polyethylene.
Spread the pressure evenly across, using a piston for consistent dispensing of even high viscosity material. Easy flow pistons (blue) require less pressure to dispense and prevent air from becoming entrapped during the dispense process. Supplied in packs of 50. Made from polyethylene.
Barrel Material High Density Polypropylene (HDPP)
Piston Material Medium Density Polyethylene (MDPE)
Volume Capacity 3cc (3ml)
Total Overall Barrel Length 2.981" (75.72mm)
Barrel Outer Diameter 0.45" (11.42mm)
Barrel Inner Diameter 0.38" (9.58mm)
Barrel Flange Width 1.23" (31.24mm)
Barrel Hole Outlet Size 0.118" (3.00mm)
Barrel Colour Natural (Clear)
Piston Colour: Blue
Mfg. Part AD903-NEF
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Piston Material Medium Density Polyethylene (MDPE)
Volume Capacity 3cc (3ml)
Total Overall Barrel Length 2.981" (75.72mm)
Barrel Outer Diameter 0.45" (11.42mm)
Barrel Inner Diameter 0.38" (9.58mm)
Barrel Flange Width 1.23" (31.24mm)
Barrel Hole Outlet Size 0.118" (3.00mm)
Barrel Colour Natural (Clear)
Piston Colour: Blue
Mfg. Part AD903-NEF
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment on barrel
- Blue easy flow pistons high performance
- Zero draft inner walls for precision
