560139 Nozzle 2.5" x 1/8" pk/10 Adhesive Dispensing Ltd

Description

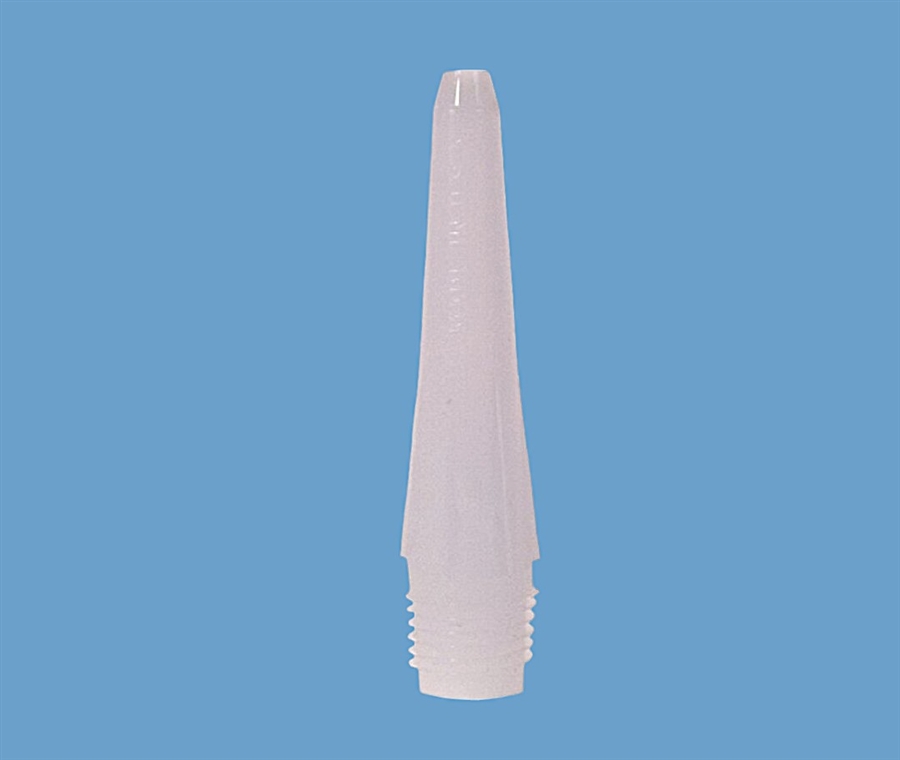

Precision moulded 2.5" long standard nozzle x 1/8" (0.125") orifice. 1/4" NPT thread to fit all cartridges and spool valves. Nozzle can be cut down if required. If using with pre-filled sealant and silicone cartridge tubes that feature an external nozzle thread, use part number TSD931-296 adapter fitting. This will provide a leak free connection to the range of nozzles. Natural high density polyethylene (HDPE) material.

Nozzle 2.5" X 1/8" (63.5mm x 3.2mm) orifice. The 5601392 nozzle series is newly added to the portfolio presenting the continuous improvement to meet market and application demand. The internal fluid path is designed with minimal flow restriction to provide the highest fluid throughput possible. Also available in Low Density (LD) Polyethylene.

• Optimum internal fluid path design - provides highest fluid throughput
• Reduces operating time - generates higher yield
• Lower air pressure requirement - reduces operating cost and enhances safety
• Easy for manual tip cutting process - reduces operating time, cost and enhances safety
• Requires less bending force - reduces operating time, cost and enhances safety
• High Density (HD) Polyethylene

Part ID: 5601392
Material: High Density Polyethylene (HDPE)
Colour: Natural
ID: 1/8" (3.2mm)
Length: 2.5" (63.5mm)
Connection: 1/4" NPT Male Thread
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 84679200
Pack Size: 10 Pieces

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard 1/4" NPT thread
Silicone-free plastics
Safe for use to 100 psi
Can be cut to suit application
Use on cartridges or valves
Supplied in sealed packs
