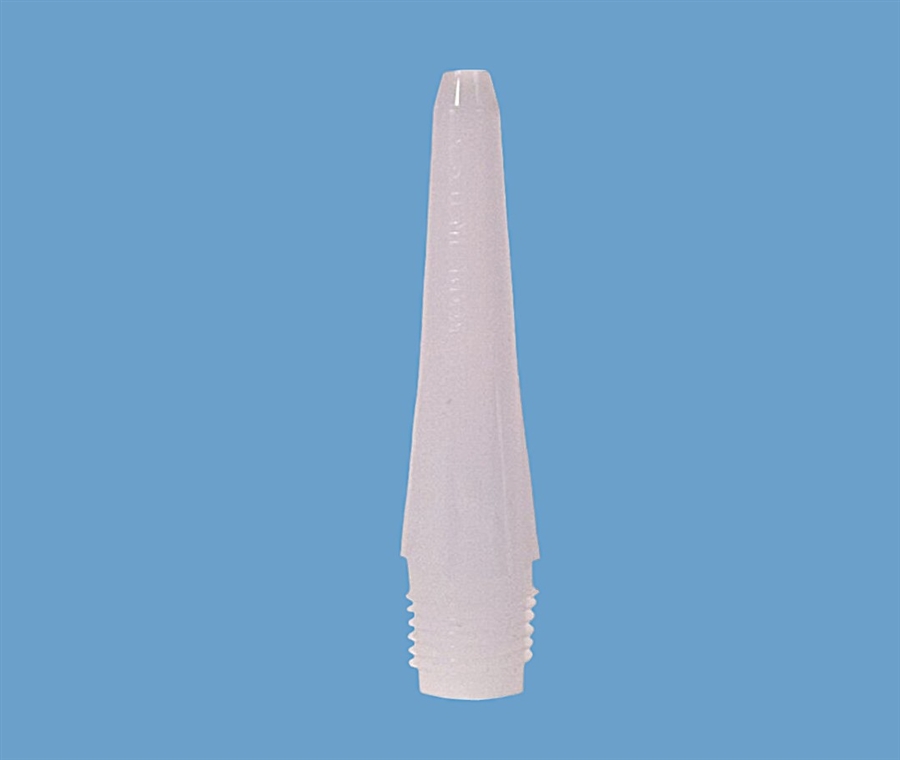

Nozzle 2.5" Long x 1/8" Orifice 220540 pk/10
Product Code: 220540
Price: £26.50
Description
Precision moulded 2.5" long standard nozzle x 1/8" (0.125") orifice. 1/4" NPT thread to fit all Semco PPG, Techcon and Nordson EFD cartridges and spool valves. Nozzle can be cut down if required. If using with pre-filled 310ml sealant and silicone cartridge tubes that feature an external nozzle thread, use our cartridge adapter fitting. Natural high density polyethylene (HDPE) material.
The 220540 nozzle series is designed to meet market and application demands.The internal fluid path is designed with minimal flow restriction to provide the highest fluid throughput possible. Supplied in a pack of (10) nozzles.
- Optimum internal fluid path design - provides highest fluid throughput
- Reduces operating time - generates higher yield
- Lower air pressure requirement - reduces operating cost and enhances safety
- Easy for manual tip cutting process - reduces operating time, cost and enhances safety
- Requires less bending force - reduces operating time, cost and enhances safety
- High Density (HD) Polyethylene
Part ID: 220540
Material: High Density Polyethylene (HDPE)
Colour: Natural
ID: 1/8" (3.2mm)
Length: 2.5" (63.5mm)
Connection: 1/4" NPT Male Thread
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 84679200
Pack Size: 10 Pieces
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard 1/4" NPT thread
- Silicone-free plastics
- Safe for use to 100 psi
- Can be cut to suit application
- Use on cartridges or valves
- Supplied in sealed packs
