DA35-3 pail pump 3kg Adhesive Dispensing Ltd

Autocan Extruder System 3kg Cans DA35-3

Product Code: DA35-3

Price: £0.00

Description

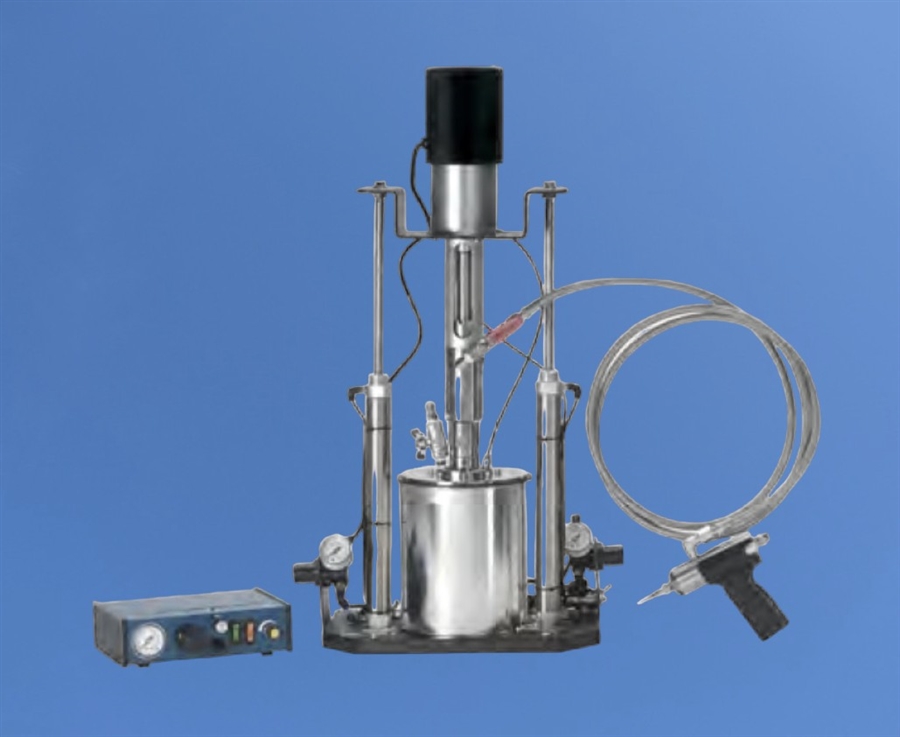

The DA35 Autocan pump extrudes high viscosity material directly from a pre-filled can. Suitable for automatic and semi-automatic controlled dispensing applications which require a constant supply of air-free material.

Includes wiper Plate for 3Kg (1 gallon) can.

Size base: 8.46 x 17.32 (215 x 440mm)
Height adjustment: 21.65 min - 28.35 max (550 min - 720mm max)
Weight: 28lbs (12.73kg)
Air input pressure: 243-700 kPa, 2.4 - 7.0 bar (35 - 100 psi)
Maximum output pressure: 6.0 Mpa, 60 bar (850 psi)
Fluid viscosity range: 10,000 - 600,000 cps
Volume per stroke: 5.0cc (0.17 oz.)
Recommended pump speed: 40cpm
Maximum recommended pump speed: 60cpm
Stroke length: 3/4 (19mm)
Max. operating temperature: 50 C
Air inlet size: 1/4 npt (f)
Fluid outlet size: 1/4 npt (f)
Wetted parts: 304 and 17-4 pH Stainless Steel, Teflon, Fluorocarbon Rubber
PEEK Sound pressure level: 64.12 dB (A) @ 40cpm
Sound power level: 70.84 dB(A) @ 40cpm
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Material delivered air-free
Simple load mechanism provides easy cleaning
Teflon, Viton and PEEK seals for wetted parts
No need to transfer material which avoids waste
Attaches to valves and other automatic systems
