Autocan Extruder System 1kg Cans DA35-1KG
Product Code: DA35-1
Price: £0.00
Description

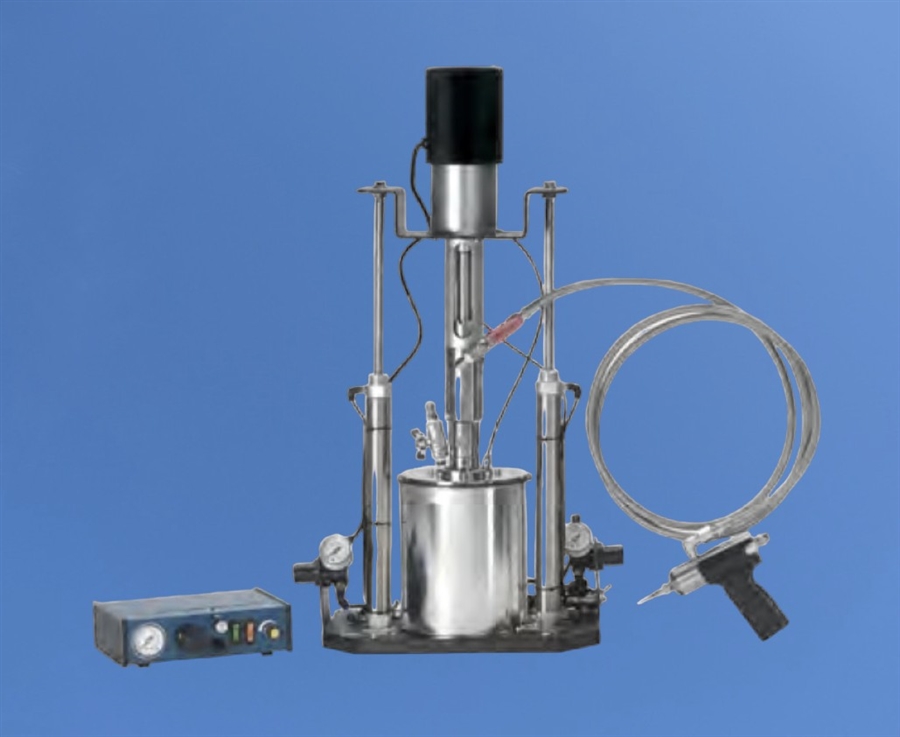

The DA35 extrudes medium to high viscosity material, such
as paste, silicone and grease under pressure directly from a pre-filled
can. Suitable for automatic and semi-automatic controlled dispensing
applications, which require a constant supply of air-free material. By
using the DA35, air bubbles and material voids that are caused by
handling or decanting viscose material are prevented.
The can is prepared by cutting off its top, the extruder pump body is lifted and the can placed in position. The extruder pump body is fitted with a follower-plate that seals and follows the material as the level drops to wipe the sides of the can clean limiting waste. The fluid is pressure fed by reinforced hoses to a valve, which is either mounted to a robot or operator held with a gun handle. The valve is actuated by a valve controller.
Includes wiper Plate for 1Kg (1qt) can. Please contact us for pricing. (Controller, hose, valve, and handle sold separately).
Size base: 8.46 x 17.32 (215 x 440mm)
Height adjustment: 21.65 min - 28.35 max (550 min - 720mm max)
Weight: 28lbs (12.73kg)
Air input pressure: 243-700 kPa, 2.4 - 7.0 bar (35 - 100 psi)
Maximum output pressure: 6.0 Mpa, 60 bar (850 psi)
Fluid viscosity range: 10,000 - 600,000 cps
Volume per stroke: 5.0cc (0.17 oz.)
Recommended pump speed: 40cpm
Maximum recommended pump speed: 60cpm
Stroke length: 3/4 (19mm)
Max. operating temperature: 50 C
Air inlet size: 1/4 npt (f) Fluid outlet size: 1/4 npt (f)
Wetted parts: 304 and 17-4 pH Stainless Steel, Teflon, Fluorocarbon Rubber
PEEK Sound pressure level: 64.12 dB (A) @ 40cpm
Sound power level: 70.84 dB(A) @ 40cpm
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The can is prepared by cutting off its top, the extruder pump body is lifted and the can placed in position. The extruder pump body is fitted with a follower-plate that seals and follows the material as the level drops to wipe the sides of the can clean limiting waste. The fluid is pressure fed by reinforced hoses to a valve, which is either mounted to a robot or operator held with a gun handle. The valve is actuated by a valve controller.
Includes wiper Plate for 1Kg (1qt) can. Please contact us for pricing. (Controller, hose, valve, and handle sold separately).
Size base: 8.46 x 17.32 (215 x 440mm)
Height adjustment: 21.65 min - 28.35 max (550 min - 720mm max)
Weight: 28lbs (12.73kg)
Air input pressure: 243-700 kPa, 2.4 - 7.0 bar (35 - 100 psi)
Maximum output pressure: 6.0 Mpa, 60 bar (850 psi)
Fluid viscosity range: 10,000 - 600,000 cps
Volume per stroke: 5.0cc (0.17 oz.)
Recommended pump speed: 40cpm
Maximum recommended pump speed: 60cpm
Stroke length: 3/4 (19mm)
Max. operating temperature: 50 C
Air inlet size: 1/4 npt (f) Fluid outlet size: 1/4 npt (f)
Wetted parts: 304 and 17-4 pH Stainless Steel, Teflon, Fluorocarbon Rubber
PEEK Sound pressure level: 64.12 dB (A) @ 40cpm
Sound power level: 70.84 dB(A) @ 40cpm
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Material delivered air-free
- Simple load mechanism provides easy cleaning
- Teflon, Viton and PEEK seals for wetted parts
- No need to transfer material which avoids waste
- Attaches to valves and other automatic systems
