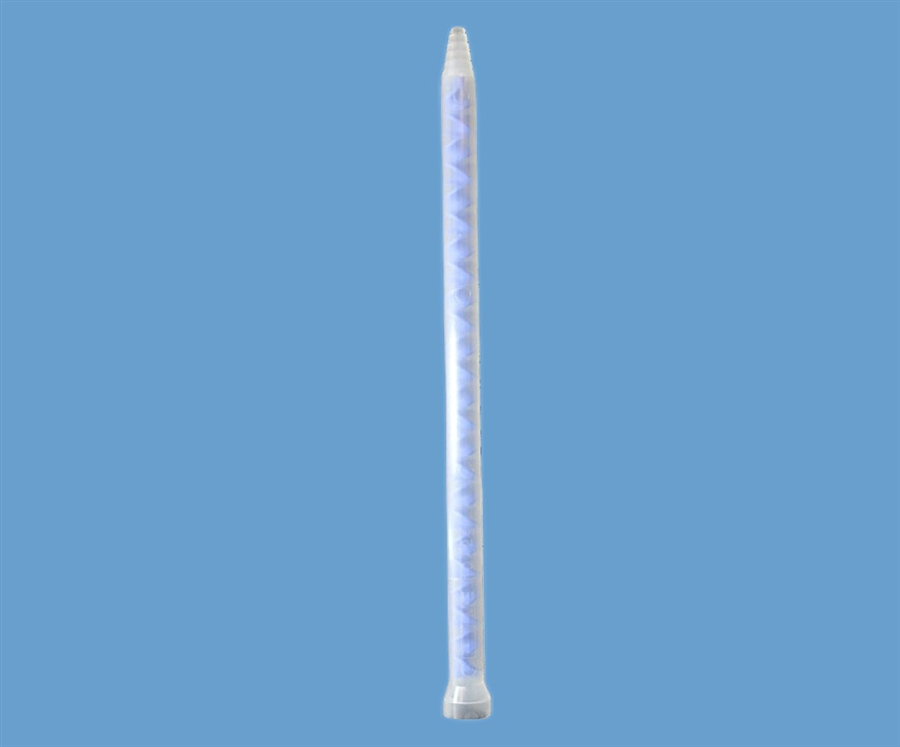

ME-Series (Blue) Static Mixers for Meter-Mix Systems

Static Mixers attach to both meter, mix, and dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

Part ID: ME 13-24T - 102459
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Blue Elements
Inner Diameter: 13.0mm
Outer Diameter: 14.0mm
Mixer Length: 293 mm
Nozzle Tip Diameter: 4.0 mm
No. of Elements: 24
Retaining Method: 15.9mm bell mouth housing
Material Volume: 27.0 ml
Max. Pressure: 17 BAR (246 PSI)
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer MixPac MedMix
Pack Size: 100 Pieces

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard for mix machines
Silicone-free plastics
Safe for use to 246 psi
Luer lock tip end
Supplied in sealed packs of 100
