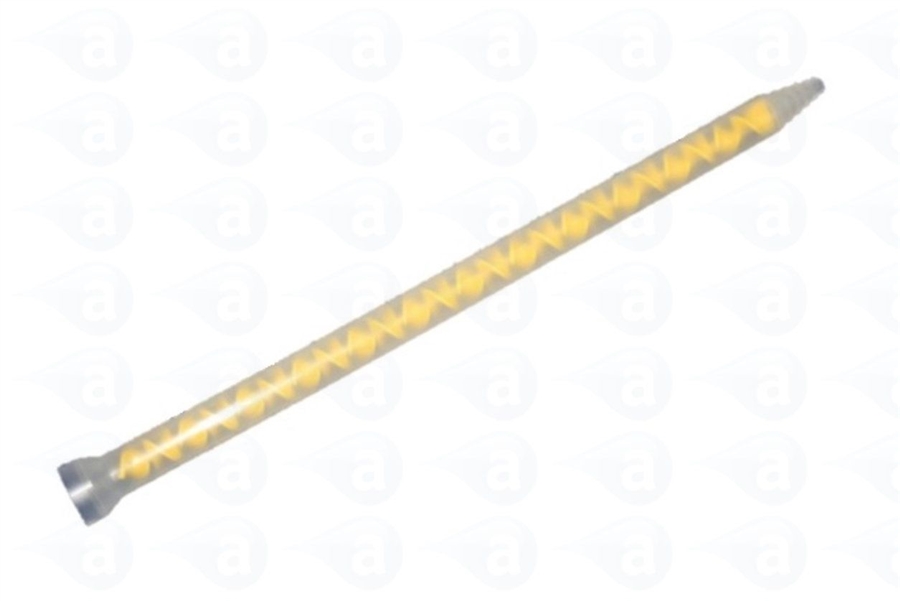

Mix Nozzle 6.4mm ID x 24 EL 1670624LL pk/50
Product Code: 1670624LL
Price: £49.50
Description
MS-Series (Yellow) Static Mixers for Meter-Mix Dispensing Systems
Static Mixers attach to both Meter, Mix, and Dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing .The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.
The part numbers describe the bell mouth, I.D. and the number of elements.
Examples:
15905-24 = a bell-mouth of 15.9m, an I.D. of 5mm, and 24 mixing elements.
15905-24LL is the same item but fitted with a luer lock adapter.
Specifications:
Part ID: 1670624LL
Material: Polypropylene
Colour: Natural Outer, Yellow Elements
Inner Diameter: 6.35mm (0.250")
Outer Diameter: 10mm (0.394")
Mixer Length: 186mm (7.32")
No. of Elements: 24
Material Volume: 4.2ml
Max. Pressure: 33 Bar
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges or mix machines
- Silicone-free plastics
- Safe for use to 100 psi
- Luer lock tip end
- Supplied in sealed packs of 50
