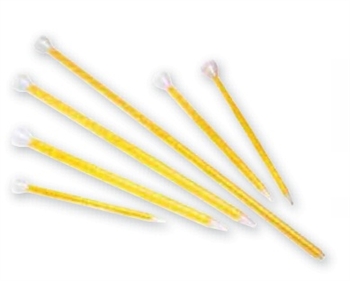

MS-Series (Yellow) Static Mixers for Meter-Mix Systems

Static Mixers attach to both Meter, Mix, and Dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

The part numbers describe the bell mouth, I.D. and the number of elements.

Examples:

15905-24 = a bell-mouth of 15.9m, an I.D. of 5mm, and 24 mixing elements.
15905-24LL is the same item but fitted with a luer lock adapter.

Features

Industry standard for 200/400ml cartridges or mix machines
Silicone-free plastics
Safe for use to 100 psi
Luer lock nozzle end
Supplied in sealed packs of 50
