Gantry style 4 axis robot 600mm x 600mm work area.

Description

The F9600N industrial robot has an automatic dispensing area of 23.62 x 23.62 (600 x 600mm) and must be supported by main and idle supports on each side of the machine. These supports also set the height of the robot. The in-line Cartesian robot operates above the dispensing application and is therefore is suited as an assembly robot for conveyors and work cells. The dispensing robot is available in 3 and 4 axes models.

Programming is simple with easy to follow English language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 16 I/O signal interface for connection to tools and controllers.

Applications

Dotting

Beading

Potting

Bonding

Sealing

Lubricating

Features

Customized sizes available
Robust ball-screw servo motor drives
Ideal for form-in-place gaskets, adhesives, potting, solar junctions, stringers, coating, frame sealing and filling
Resolution 0.01mm
Performs continuous path and point-to-point motions
Self contained controller functions
Software tip alignment routine for quick program offsets when changing dispensing tips
Step-and-repeat functions _ program one object only for multiple identical objects
On board 100 programs, 3,000 points per program
Optional bar code scanning software
1 Year Warranty - CE Certified

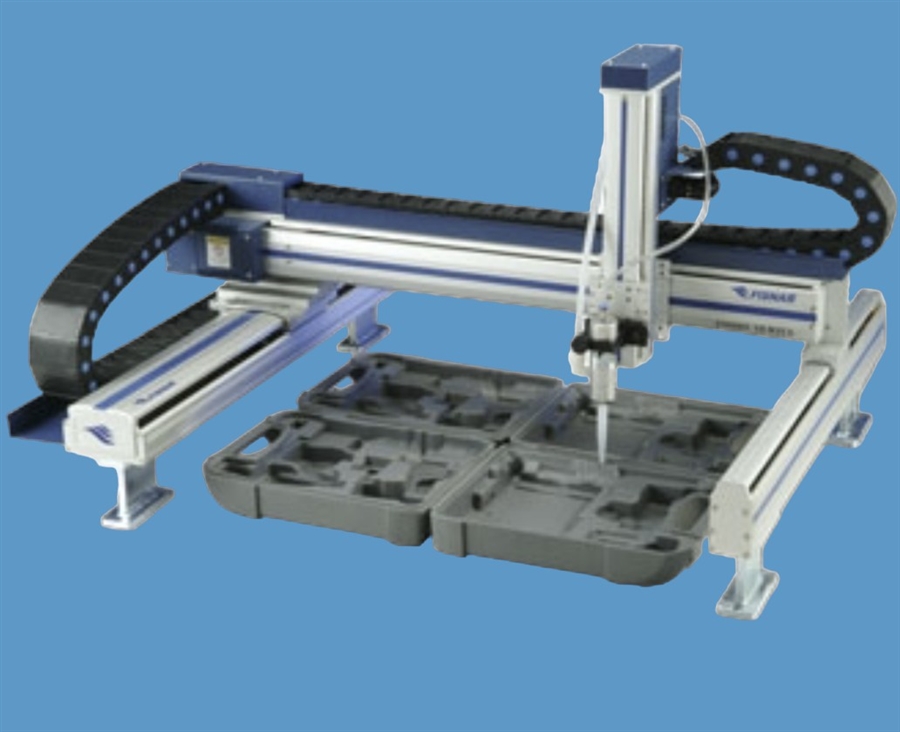

4 Axis Servo Gantry Robot 600mm x 600mm x 200mm Model F9604N
