3 Axis Servo Cantilever Robot 300 x 300 x 200mm F9300N
Product Code: F9300N
Price: £0.00
Description

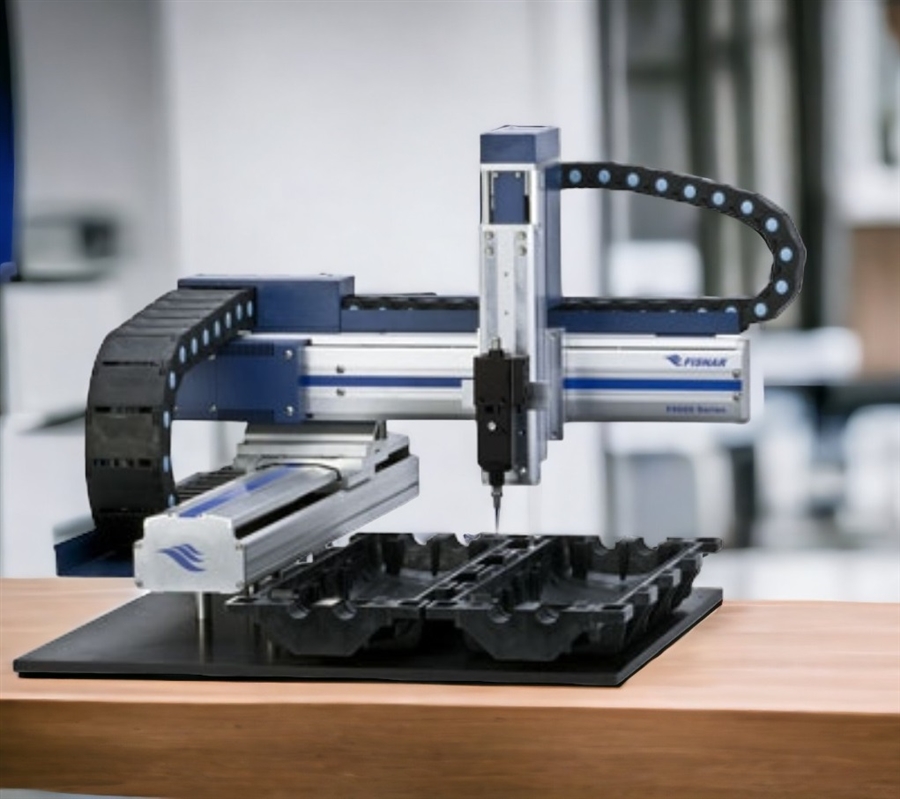

The F9300N industrial robot has a working and automatic dispensing area of 11.81 x 11.81 (300 x 300mm) and can be operated in cantilever mode. The height of the assembly robot is adjusted by mounting supports that are available in standard heights. The in-line Cartesian robot operates above the dispensing application and is therefore is suited as an assembly robot for conveyors and work cells. The dispensing robot is available in 3 and 4 axes models. Programming is simple with easy to follow English language instructions.
Commands are followed and responses entered by a Teach Pendant. An LCD
display prompts the user for a data input and once confirmed,
automatically displays the next instruction. By this method a program
can be created quickly and simply. All machines include 16 I/O signal interface for connection to tools and controllers. |
| |||||||||||||||||||
Features
- Customized sizes available
- Robust ball-screw servo motor drives
- Ideal for form-in-place gaskets, adhesives, potting, solar junctions, stringers, coating, frame sealing and filling
- Resolution 0.01mm
- Performs continuous path and point-to-point motions
- Self contained controller functions
- Software tip alignment routine for quick program offsets when changing dispensing tips
- Step-and-repeat functions _ program one object only for multiple identical objects
- On board 100 programs, 3,000 points per program
- Optional bar code scanning software
- 1 Year Warranty - CE Certified
