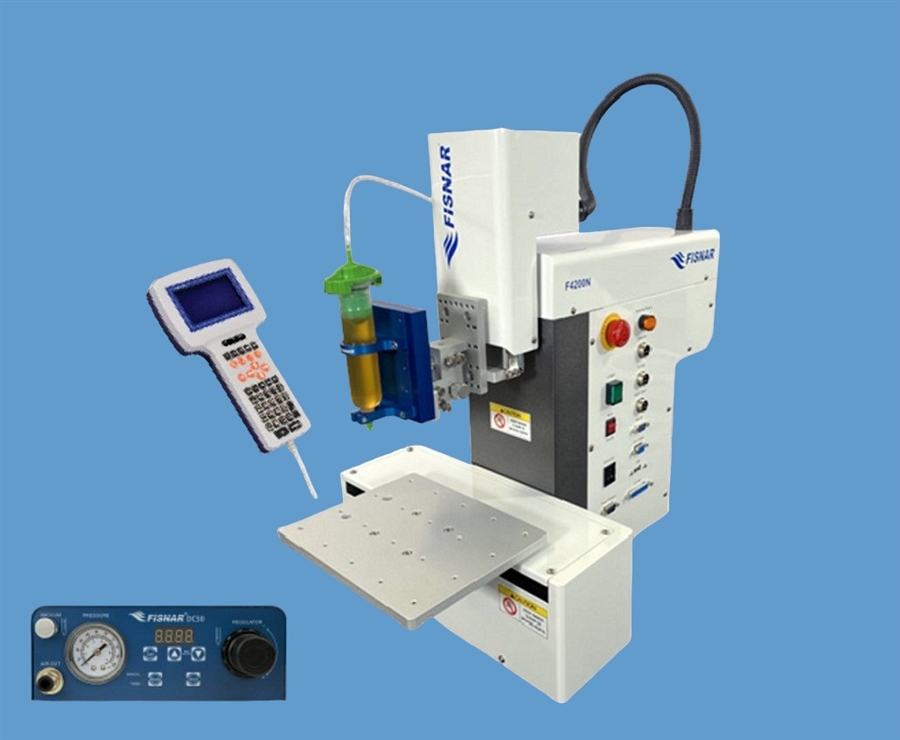

Fisnar F4200N.2 Desktop 3 axis robot 200mm x 200mm work area Adhesive Dispensing Ltd

Description

The F4200N.2 is a compact and economically priced benchtop robot. Designed for medical, product assembly and laboratory type environments requiring a streamlined and easily maintained machine. This robot will support most light dispensing applications that require a high-performance standard. The bench space reduction is an additional benefit. Programming is simply carried out by a teach-pendant (included) using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.

The F4200N.2 bench top dispensing robot is a cost-effective solution combining high level programming technology with precision placement engineering. The 4000 series is a compact, heavy-duty design, which is easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Each robot is capable of interfacing with Adhesive Dispensing equipment. Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.

Programming is simple with easy-to-follow English language instructions. Commands are followed and responses entered by a teach pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 16 I/O signal interface for connection to tools and controllers. A DC50 MAX digital dispenser/ controller machine is supplied with the robot (so it is ready to run out of the box). Robot can be ordered without the digital controller.

To conform to European CE safety regulations (Machinery Directive 2006/42/EC), the Fisnar F4200N.2 is recommended to be integrated into a safety enclosure (sold separately) or customer should construct themselves.

X/Y/Z Work area (mm): 200 / 200 / 50
Worktable load / Tool: 3 kg. / 1 kg.
Max. Speed X&Y / Z: 500 / 200 (mm/sec)
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.001mm/ Axis
Data Memory: 100 Programs 4,000 points / program
Drive Sys. / Stepping motor: 3-phase micro stepping motor
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O signals: 8 inputs / 8 outputs
External Interface: USB / RS232
Power Supply: AC 95-132V, AC 180-250V
Dimensions (W x D x H): 327x 500 x 450mm
Weight: 44 lbs (20 kg)
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Ideal for form-in-place gaskets, adhesives, potting, coating and filling
High resolution 0.001mm
Performs continuous path and point-to-point motions
Quick fluid-purge button located on front panel
Software tip alignment routine for quick program offsets when changing dispensing tips
USB connector allows system updates and program interchange between robots
Step-and-repeat functions _ program one object only for multiple identical objects
On board 100 programs, 400,000 point memory capacity, 4,000 points per program
Available without Teach Pendant for multiple installations
1 Year Warranty - CE Certified
