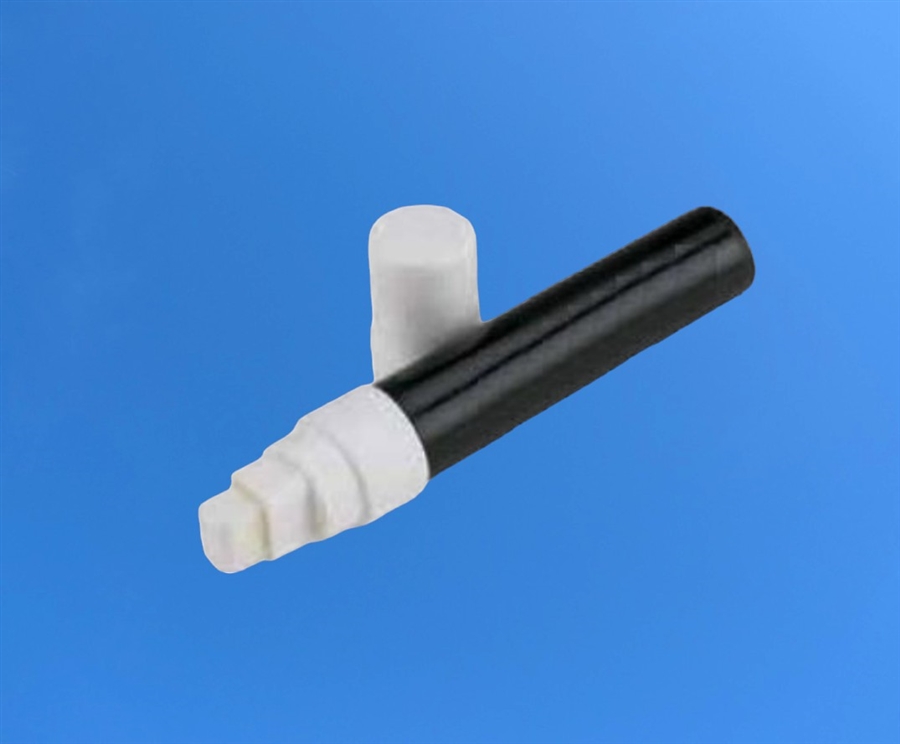

1.5oz Spring Nib Pen Assembly Black FV-0600 pk/50
Product Code: FV-0600-50
Price: £187.50
Description
Flow-Seal Pens & Bottles
Flow-seal environmental pens and bottles channel controlled amounts of no-clean flux, rma, solvents, lubricants, masking and water-based liquids. Flow-seal products prevent evaporation of material and conform to current regulations for controlling substances capable of evaporation hazard. A unique dispensing valve prevents flooding and spattering, releasing material in controlled amounts to the nib (tip).
The pen or bottle is in two parts (cap and reservoir) and is easily assembled. The reservoir should be filled with material to within 0.75" (19mm) of the top; this air chamber allows for the valve cap to be pressed securely in position. Priming is achieved by depressing the nib while the pen is vertical. Pricing is for a pack of 50.
Flow-Seal products are supplied with nib 381-600-PB.
Part ID: FV-0600
Materials: Polyethylene/ nylon/ polyester
Colour: Natural body/ yellow nib assembly/ white cap
Size: 1.5oz (44.35ml)
Length: 160mm (including cap)
Outer Diameter: 25mm
Nib Width: 15mm
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Black body also suitable for UV sensitive fluids
- Supplied ready to fill, assemble and use
- Includes 2 ball bearings to place inside body and shake to agitate certain liquids
- Priming is achieved by depressing the nib while the pen is vertical
- Valve prevents flooding and spattering
- No-clean flux, rma, solvents, lubricants, masking and water-based liquids
- Prevent evaporation of material
- Conform to current regulations for controlling substances capable of evaporation hazard
