Description
Flow-Seal Pens & Bottles
Flow-seal environmental pens and bottles channel controlled amounts of no-clean flux, rma, solvents, lubricants, masking and water-based liquids. Flow-seal products prevent evaporation of material and conform to current regulations for controlling substances capable of evaporation hazard. A unique dispensing valve prevents flooding and spattering, releasing material in controlled amounts to the nib (tip).
The pen or bottle is in two parts (cap and reservoir) and is easily assembled. The reservoir should be filled with material to within 0.75" (19mm) of the top; this air chamber allows for the valve cap to be pressed securely in position. Priming is achieved by depressing the nib while the pen is vertical.
Flow-Seal products are supplied with nib 381-8425-AC. Pricing is for a single pen.

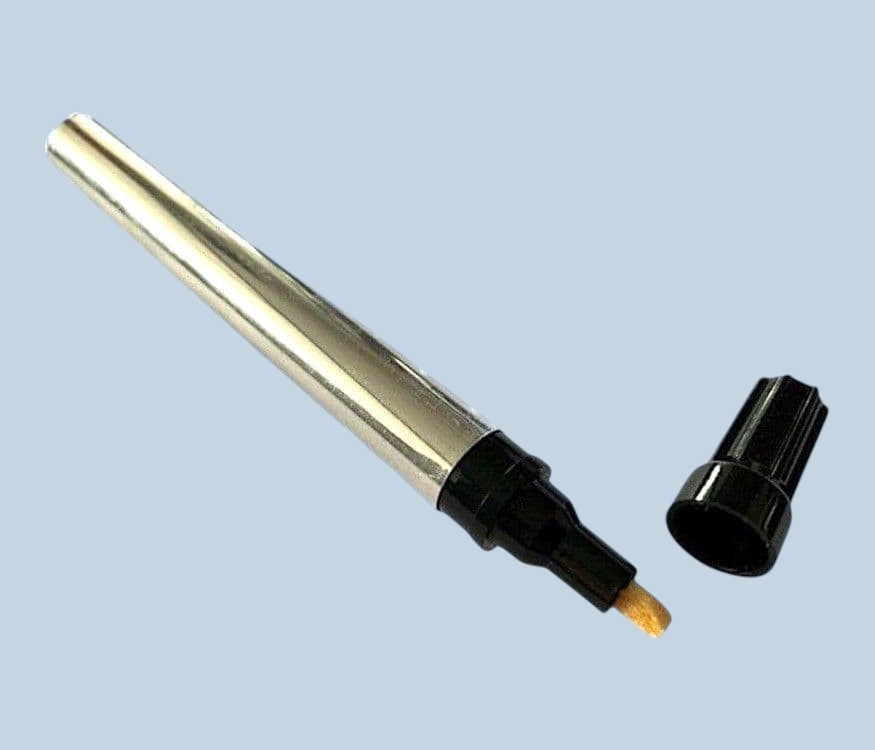

Part ID: FV-0200
Materials: Aluminium/ nylon/ felt
Colour: Silver body/ white nib assembly/ black cap
Size: 10ml
Length: 135mm (without cap)
Outer Diameter: 13mm
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Aluminium body
- ESD safe
- Supplied ready to fill, assemble and use
- Priming is achieved by depressing the nib while the pen is vertical
- Valve prevents flooding and spattering
- No-clean flux, rma, solvents, lubricants, masking and water-based liquids
- Prevent evaporation of material
- Conform to current regulations for controlling substances capable of evaporation hazard
