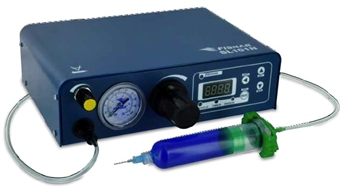

Low Pressure Dispenser 0-15 PSI SL101-15
Product Code: SL101-15
Price: £515.00
Description
The SL101-15 digital liquid dispenser, with its versatile design makes it perfectly suited for a wide variety of dispensing applications, from microdot deposits to larger volume output. Low pressure 0-15 psi version is suitable for watery fluids and cyanoacrylates, it includes a suck-back feature to ensure low viscosity liquids do not drip.
The SL101-15 provides micro controlled timer programmable from 0.01 to 9999 seconds. All set up hoses and fittings, along with barrels and tips, make the unit ready to use right out of the box.
Size: 8.63" x 8.50" x 2.63" (21.92 x 21.59 x 6.68cm)
Dispense time: 0.01 - 99.99 seconds
Operation Modes: Manual, Timed,
Cycle Voltage: 110 VAC & 220 VAC
Internal Voltage: 24 VDC
Air input: 70 to 100 psi (5 to 7 bar)
Air output: 1-15 psi (0.1 - 1 bar)
Standards: CE approved, RoHS compliant
Weight: 3.5 lbs (1.59 kg)
The SL101-15 provides micro controlled timer programmable from 0.01 to 9999 seconds. All set up hoses and fittings, along with barrels and tips, make the unit ready to use right out of the box.
Size: 8.63" x 8.50" x 2.63" (21.92 x 21.59 x 6.68cm)
Dispense time: 0.01 - 99.99 seconds
Operation Modes: Manual, Timed,
Cycle Voltage: 110 VAC & 220 VAC
Internal Voltage: 24 VDC
Air input: 70 to 100 psi (5 to 7 bar)
Air output: 1-15 psi (0.1 - 1 bar)
Standards: CE approved, RoHS compliant
Weight: 3.5 lbs (1.59 kg)
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Manual, Timer, or Cycle Operation Modes
- Foot Pedal or Finger Switch Controlled
- Programmable Timer 0.01 - 99.99 seconds
- Suck-Back feature ensures no dripping
- Stores up to 10 dispensing routines
- Complete with an accessory dispensing kit
