Peristaltic Pump Air Free Dispenser ADL-DISP5600
Product Code: ADL-DISP5600
Price: £850.00
Description
Peristaltic pump dispensers transfer low viscosity liquids by pressure displacement applied by a turning rotor against a PTFE tube carrying the material. Usually these pumps are selected because the liquids might be hazardous or difficult to work with where it is preferable to limit any operator exposure. Another reason is that peristaltic pumps are completely air free.

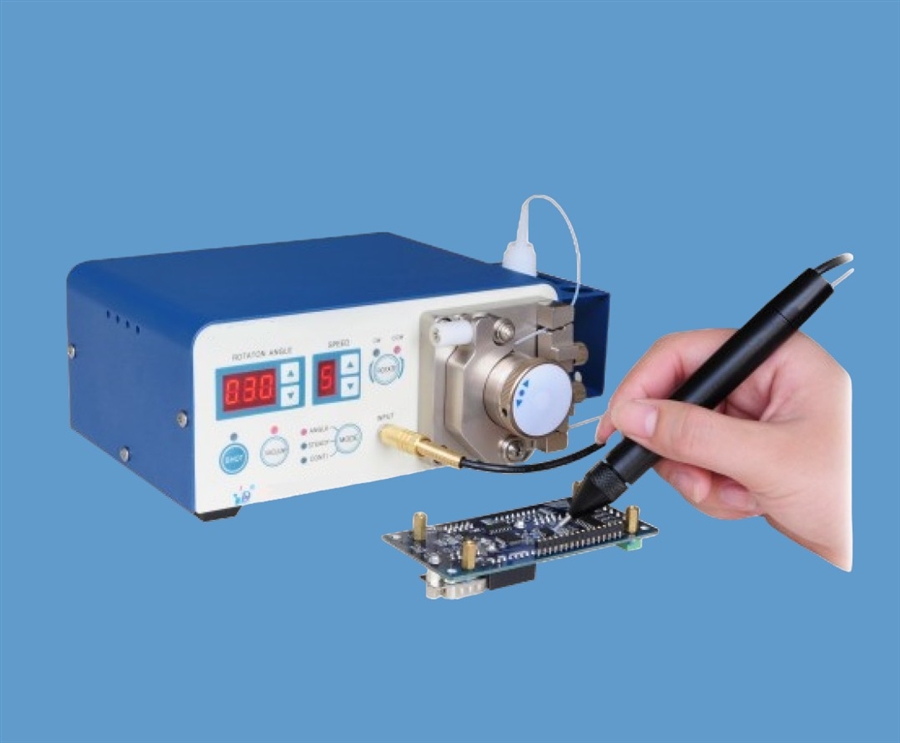

The DISP5600 peristaltic pump is a type of positive displacement dispensing machine used for pumping a variety of materials. The fluid is contained within a flexible Teflon tube fitted inside a circular pump casing. The special rotor turns and compresses the flexible tube thus forcing the fluid to be pumped to move through the tube. The digital timer allows you to dispense accurate and repeated amounts of fluid every time. The pumped fluid contacts only the inside surface of the tubing. There are no other valves, O-rings, seals or packing's to worry about in a peristaltic pump so it is zero maintenance. No requirement for compressed air. Liquids are drawn direct from any bottles, cans, manufacturers bottles and along the supplied feed tubing without fatigue or error.
By not using compressed air, moisture sensitive adhesives such as Cyanoacrylates will perform better and will not prematurely cure or frost in the bottles. This system is supplied with a full starter kit including PTFE tubing roll, needle tip kit selection box, user guide and product manuals. And we'll assist with full technical support to ensure a quick setup.
Part ID: ADL-DISP5600
Forward Mode: 0 - 999 Degree
Reverse Mode: 0 - 999 Degree
Size: 190 x 184 x 94 mm
Weight: 3.5 kg
Voltage: 220 - 240 V AC (110V Version Available on Request)
Warranty: 1 Year
Min Dot Size: 0.0001cc (f0.2*f0.7)
Max Viscosity: Up to 1,000 cps
Meets or Exceeds: CE
Warranty: 1 Year
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The DISP5600 peristaltic pump is a type of positive displacement dispensing machine used for pumping a variety of materials. The fluid is contained within a flexible Teflon tube fitted inside a circular pump casing. The special rotor turns and compresses the flexible tube thus forcing the fluid to be pumped to move through the tube. The digital timer allows you to dispense accurate and repeated amounts of fluid every time. The pumped fluid contacts only the inside surface of the tubing. There are no other valves, O-rings, seals or packing's to worry about in a peristaltic pump so it is zero maintenance. No requirement for compressed air. Liquids are drawn direct from any bottles, cans, manufacturers bottles and along the supplied feed tubing without fatigue or error.
By not using compressed air, moisture sensitive adhesives such as Cyanoacrylates will perform better and will not prematurely cure or frost in the bottles. This system is supplied with a full starter kit including PTFE tubing roll, needle tip kit selection box, user guide and product manuals. And we'll assist with full technical support to ensure a quick setup.
Part ID: ADL-DISP5600
Forward Mode: 0 - 999 Degree
Reverse Mode: 0 - 999 Degree
Size: 190 x 184 x 94 mm
Weight: 3.5 kg
Voltage: 220 - 240 V AC (110V Version Available on Request)
Warranty: 1 Year
Min Dot Size: 0.0001cc (f0.2*f0.7)
Max Viscosity: Up to 1,000 cps
Meets or Exceeds: CE
Warranty: 1 Year
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ultra Low maintenance design
- Simple to setup and operate
- No external air source required
- Use for adhesives, Printing ink, Electrolyte, acids etc
- Suitable for small shots and continuous operation
- Adjustable rotor speed in volume 0-9
- Self priming from bottle or jar
- For smaller volume dispensing at lower flow rates, Teflon tubing is used
- System operated by finger switch on holder or shot button on front of unit
- Display counts down for dispense
- LED display for accurate readings
