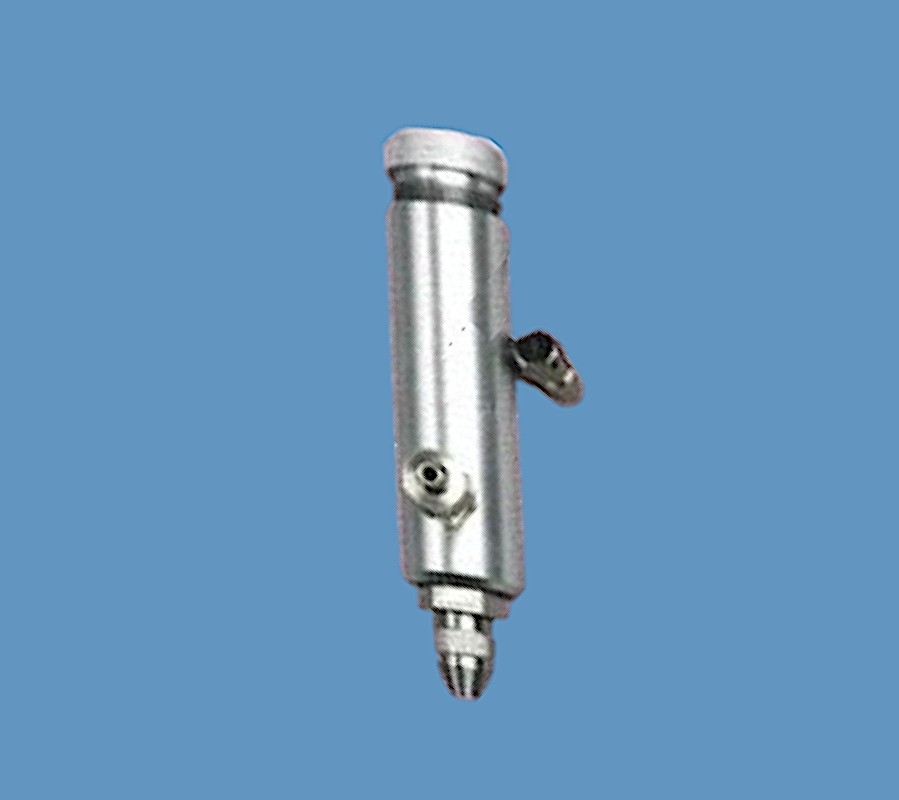

Air Operated Disc Valve Part AD725D
Product Code: AD725D
Price: £465.00
Description
Designed to dispense low to medium viscosity fluids fed from syringes, cartridges or pressure pot, the AD725D provides controlled deposits of UV cure, RTV silicones, oils, solvents, grease and paints.
AD725D valves are approximately 105mm long and 25mm wide. They weigh approx. 120g. The operating air pressure required is 70 psi up to 100 psi. The minimum shot size for the valve is approximately 0.01ml and these valves will cycle up to speeds of 600 deposits per minute. The main body is constructed in type 304 stainless steel.
The viscosity range of fluid is recommended at between 1 to 100,000 cps. The maximum fluid pressure is 500psi. The repeatability is +/- 0.3%. Recommended digital timed controllers for these valves are the TS250, TS350 and TS500R.
All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, tip cap seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for adhesives that bond to metals such as Cyanoacrylates.
Part ID: AD725D
Materials: 304 SS, EPR
Size: 105mm L x 25mm Diameter
Weight: 120g
Viscosity Range: 1 to 100,000 CPS
Repeatability: +/-0.2%
Cycle Rate: Up to 600 cycles/ minute
Min Shot Size: 0.01 cc or ml
Max Fluid Pressure: 500 psi
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/8" NPT
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for UV cure
- Handles many materials
- Repeat deposits, lines or potting
- Adjustable stroke control for fine tuning
- Syringe feed, cartridge or pressure pot
- Supplied with hose, input fitting, tip adapter
- Easy bench, machine or robot mount
- Control using TS500R, TS250 or TS350
