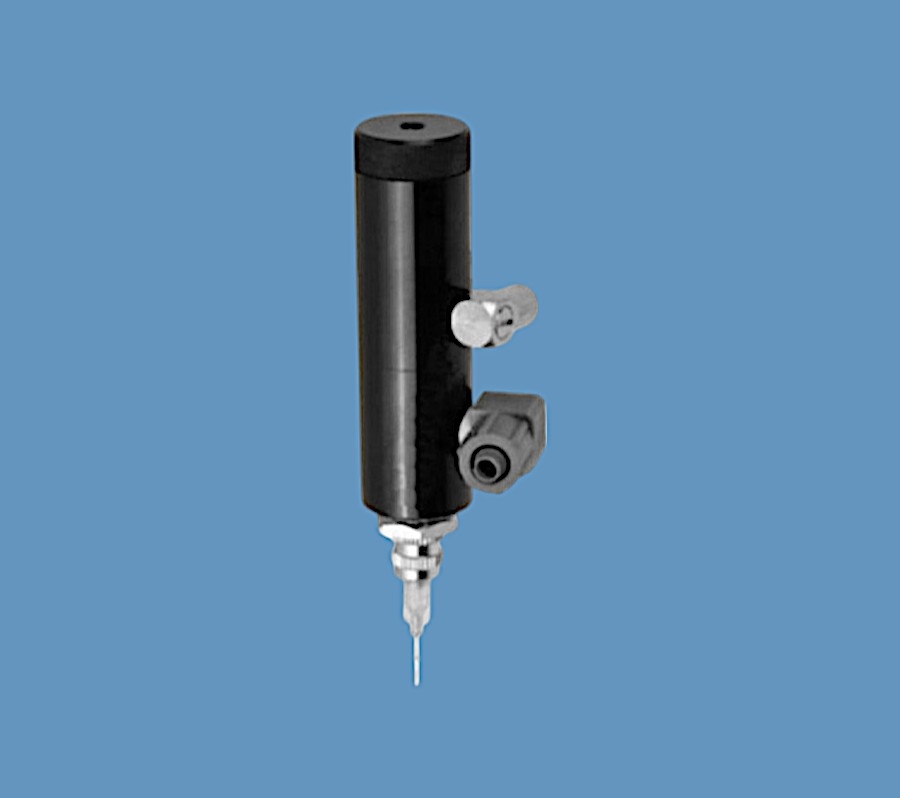

Thick Fluid Pneumatic Spool Valve AD730D
Product Code: AD730D
Price: £525.00
Description
Designed to dispense medium to thick materials fed from syringes or cartridges. The AD730 provides controlled deposits of sealants, silicones, RTV, grease and pastes.
AD30 valves are approximately 140mm) long and 32mm wide. They weigh approx. 160g. The operating air pressure required is 70 psi up to 100 psi. The minimum shot size for the valve is approximately 0.01ml and these valves will cycle up to speeds of 600 deposits per minute.
The viscosity range of fluid is recommended at between 5000 - 100,000 cps. The maximum fluid pressure is 500psi. The repeatability is +/- 0.2%. Recommended digital timed controllers for these valves are the TS250, TS350 and TS500R.
All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, tip cap seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.
Part ID: AD730D
Materials: 304 SS, Anodised Aluminium, EPR
Size: 140mm L x 32mm Diameter
Weight: 160g
Viscosity Range: 5,000 to 100,000 CPS
Repeatability: +/-0.2%
Cycle Rate: Up to 600 cycles/ minute Min
Shot Size: 0.01 cc or ml
Max Fluid Pressure: 500 psi
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/8" NPT
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
AD30 valves are approximately 140mm) long and 32mm wide. They weigh approx. 160g. The operating air pressure required is 70 psi up to 100 psi. The minimum shot size for the valve is approximately 0.01ml and these valves will cycle up to speeds of 600 deposits per minute.
The viscosity range of fluid is recommended at between 5000 - 100,000 cps. The maximum fluid pressure is 500psi. The repeatability is +/- 0.2%. Recommended digital timed controllers for these valves are the TS250, TS350 and TS500R.
All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, tip cap seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.
Part ID: AD730D
Materials: 304 SS, Anodised Aluminium, EPR
Size: 140mm L x 32mm Diameter
Weight: 160g
Viscosity Range: 5,000 to 100,000 CPS
Repeatability: +/-0.2%
Cycle Rate: Up to 600 cycles/ minute Min
Shot Size: 0.01 cc or ml
Max Fluid Pressure: 500 psi
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/8" NPT
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for silicones, sealants, greases, gels
- Snuff-back action prevents drips
- Handles high viscosity materials
- Repeat deposits, lines or potting
- Adjustable stroke control for fine tuning
- Syringe feed, cartridge or pressure pot
- Supplied with hose, input fitting, tip adapter
- Easy bench, machine or robot mount
- Control using TS500R, TS250 or TS350
