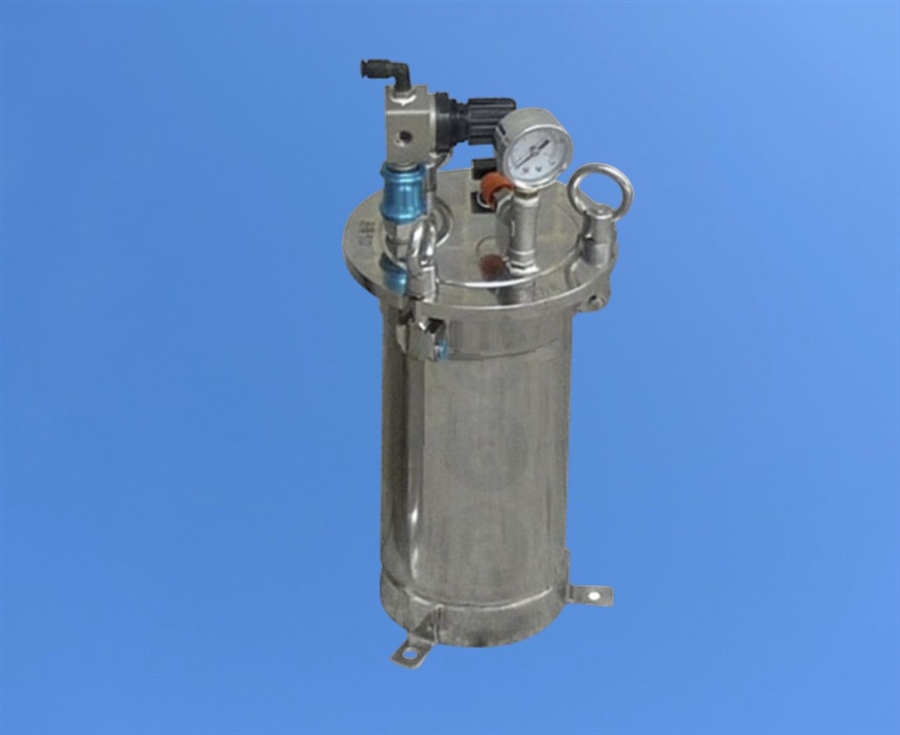

3 Litre Pressure Pot 0-75 psi regulator TS2230
Product Code: TS2230
Price: £555.00
Description
The TS2230 Pressure Pot (pressure up to 75 psi) is designed to accommodate all solvents and adhesives, as well as cyanoacrylates and UV's. It will also accommodate clear and black fittings and tubing in 1/4, 3/8, and 4 mm, with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use. Airtight seals ensure no leakage or air entrapment problems.
75 psi operating pressure easily handles fluid with viscosity up to 35,000 CPS. Disposable polyethylene dip tube can be quickly changed. The pressure gauge and pressure regulator are located on top for easy reading and access. Includes 1/4" fluid line connector kits. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot. Main tank body and tank lid is type 304 stainless steel.
Material: Stainless Steel Body and Cap Type 304
Colour: Silver
Outer Diameter: 180mm
Total Height: 350mm
Inner Chamber Diameter: 130mm
Inner Chamber Height: 230mm
Wall Thickness: 3mm
Air Inlet Thread: 1/4"
Fluid Outlet Thread: 6x8mm (located centre of tank lid)
Weight: 6.0 kg
Max Pressure: 100psi (7 BAR) - safety valve set at 7 bar
Warranty: 1 Year
Details: CE certified
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
75 psi operating pressure easily handles fluid with viscosity up to 35,000 CPS. Disposable polyethylene dip tube can be quickly changed. The pressure gauge and pressure regulator are located on top for easy reading and access. Includes 1/4" fluid line connector kits. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot. Main tank body and tank lid is type 304 stainless steel.
Material: Stainless Steel Body and Cap Type 304
Colour: Silver
Outer Diameter: 180mm
Total Height: 350mm
Inner Chamber Diameter: 130mm
Inner Chamber Height: 230mm
Wall Thickness: 3mm
Air Inlet Thread: 1/4"
Fluid Outlet Thread: 6x8mm (located centre of tank lid)
Weight: 6.0 kg
Max Pressure: 100psi (7 BAR) - safety valve set at 7 bar
Warranty: 1 Year
Details: CE certified
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 75 psi - High operating pressure
- Fluid Outlet Port - On the lid for easy access
- Two Handles - For easy removal of lid
- Four knobs to open/close lid - For positive and uniform seal
- Pressure Gauge - Located on top for easy reading
- Pressure Regulator - Located on top for ease of access
- Relief Valve with Pull Ring - To depressurise after usage
- Disposable polyethylene - Fluid lines can be changed quickly
- Ferrule - Disposable with tubing eliminates cleanup
- Hose Kit - Supplied with tank
- Tube Sizes - 1/4" tube kit supplied
