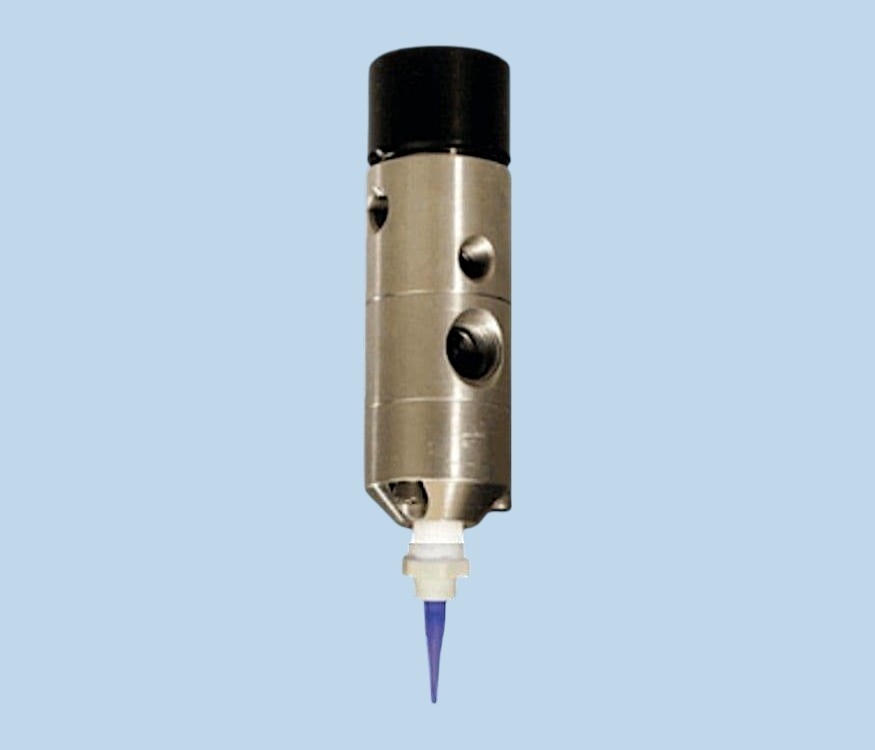

Sealant & Grease High Pressure Valve TS934A
Product Code: TS934A
Price: £759.00
Description
Designed to dispense viscous materials fed from cartridges or pumps. The TS934A Spool Valve is a spool design for a fast ON/OFF dispensing action unaffected by material input pressure, and is ideal for material with a viscosity between 5000 to 3,000,000 CPS at pressures of up to 2,500 psi. The hardened spool slides in Teflon seals and displaces a portion of the material back into the nozzle during shut off, creating an accurate suck-back anti-drip action. An oil chamber creates an additional liquid seal that prevents inadvertent moisture from entering the spool mechanism.
The valve design facilitates easy maintenance without the need for special tools. The valve is opened by applying air pressure and closed via a return spring (single acting). A port is provided so that the valve may be connected for air closing without the spring (double acting). All side ports can be rotated in 120 or 90-degree increments to accommodate multiple valve connections.
All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, mounting attachment, tip cap end seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.
Part ID: TS934A
Materials: Anodised Aluminium, 303 Stainless Steel, Teflon
Length: 4.70" (119mm)
Diameter: 1.50" (38mm)
Weight: 1.16lb (726g)
Viscosity Range: 5,000 to 3 Million CPS
Repeatability: +/- 1.28%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 39,000 ml / minute @ 100 psi
Min Shot Size: 0.14 cc / ml
Max Fluid Pressure: 2500 psi (172.4 bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/4"
Material Outlet: 1/4"
Mounting: 1.5" (38mm) diameter
Commodity Code: 84248940
Product Data Sheet
Product User Guide
Features
- Ideal for silicones, sealants, greases, gels
- Snuff-back action prevents drips
- Handles high viscosity materials
- Repeat deposits, lines or potting
- Adjustable stroke control for fine tuning
- Syringe feed, cartridge or pressure pot
- Supplied with hose, input fitting, tip adapter
- Easy bench, machine or robot mount
- Control using TS500R, TS250 or TS350
