8oz syringe barrel filling station

Description

An efficient method of transferring greases, epoxies, silicones, solder pastes and other thixotropic materials into a disposable syringe barrel. These barrel loaders can be connected to a pneumatic dispenser (optional) to control the operation.

The model 900-8 barrel loader is for pre-filled 8oz cartridges, which are placed inside a vertical container mounted on the stand. The barrel attachment assembly is threaded to accept luer lock barrels. Activating the optional dispenser once connected to the system causes the material to rise inside the barrel. This method simplifies loading and reduces the possibility of entrapped air in the fluid.

The 900-8 includes stand, retainer support, 8oz retainer and cap, one (1) empty 8oz cartridge and plunger, an outlet cap and special barrel attachment assembly.

Part ID: 900-8
Materials: Stainless Steel/ Nylon
Capacity: 8oz (237cc/237ml)
Weight: 1kg
Max Pressure: 100 PSI (7 Bar)
Warranty: 12 Months

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

For 8oz cartridges
Bottom fills syringes to reduce air
Supplied with component kits
Safe for use up to 100 psi
Quick and easy setup
Industrial grade safe
For pastes, gels, silicones and sealants

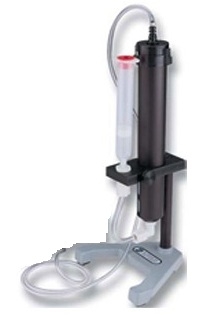

8oz Syringe Filling Station 900-8
