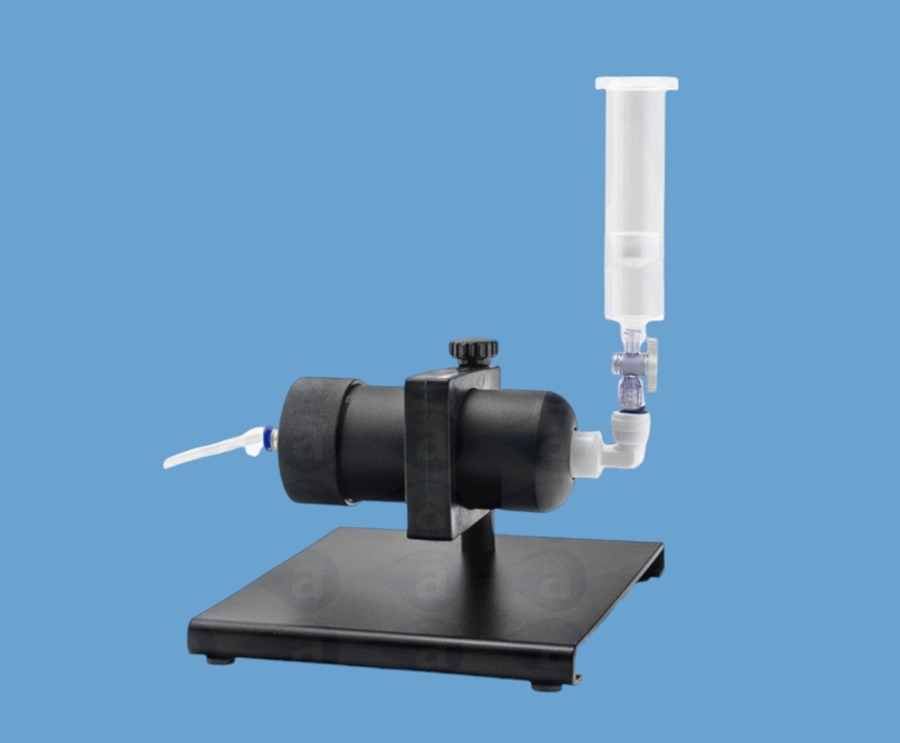

2.5oz syringe barrel filling station

Description

A syringe filling system from 2.5oz (75cc) cartridges to any size syringe barrel. Material is transferred under pressure from cartridge nozzle end to syringe tip end. This eliminates air entrapment and provides for a simple filling station. System includes a retainer, cap, base stand, rod, adjustable 5 micron filter regulator, 2.5oz cartridge with plunger, threaded syringe adapter fittings, selection of syringe barrels, wiper pistons and cap seals.

Ideal for use with sealants, silicones, RTVs, mastics, grease and other liquids. Also available in different size cartridges for larger batch syringe filling. Use these systems with a 0-100 psi dispenser to provide a controlled air pulse for consistent volume filling of syringe barrels each time.

Part ID: 900-2
Materials: Stainless Steel/ Nylon
Capacity: 2.5oz (77cc/77ml)
Weight: 1kg
Max Pressure: 100 PSI (7 Bar)
Warranty: 12 Months

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

In sizes 60ml
Bottom fills syringes to reduce air
Supplied with component kits
Safe for use up to 100 psi
Quick and easy setup
Industrial grade safe
For pastes, gels, silicones and sealants
