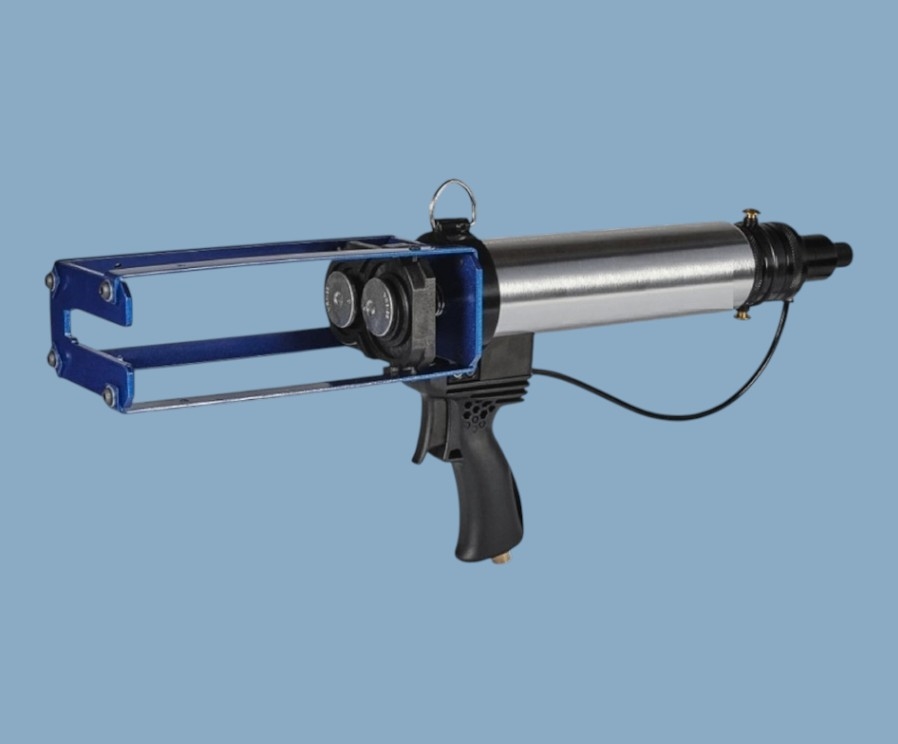

200ml Pneumatic Dual Gun Multi Ratio CG200-3
Product Code: CG200-3
Price: £335.00
Description
For epoxies, adhesives and other materials that are supplied in 200ml two part, side-by-side 1:1, 2:1, 4:1 and 10:1 ratio cartridges with the use of a static mixing nozzle. Rod driven gun with reverse button.
Features a built in mini regulator to set most suitable flow rate or viscosity of material. Includes kit and tools to adjust from 1:1 ratio to other ratios. Use with 200ml dual cartridges. Works with most configurations.
Features a built in mini regulator to set most suitable flow rate or viscosity of material. Includes kit and tools to adjust from 1:1 ratio to other ratios. Use with 200ml dual cartridges. Works with most configurations.
The lightweight and durable construction of our dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. Gun supplied with parts to suit the different cartridge ratios. CE certified and covered by a1 Year warranty.
Part ID: CG200-3
Materials: Nylon, Polypro, Steel, Zinc
Colour: Black/ Blue/ Silver
Size: 200ml dual 1:1, 2:1, 4:1, 10:1 ratios
Weight: 2.26kg
Length: 535mm: (front to end) total gun length
Thrust: Nominal Thrust 490 lbs. @ 100psi
Max Pressure: 100 PSI
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Part ID: CG200-3
Materials: Nylon, Polypro, Steel, Zinc
Colour: Black/ Blue/ Silver
Size: 200ml dual 1:1, 2:1, 4:1, 10:1 ratios
Weight: 2.26kg
Length: 535mm: (front to end) total gun length
Thrust: Nominal Thrust 490 lbs. @ 100psi
Max Pressure: 100 PSI
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Nominal Thrust 490 lbs. @ 100 psi
- 2.5" cylinder
- For Use with 200 ml Cartridges all ratio's
- Easily Converts in Just Seconds with Snap In/Snap Out Push Disks
- Slide in/Side Load
- Air Regulator
- Air Dump Valve Stops Flow Instantly
- Reverse Air Button
- Quick Disconnect Nipple Included
- All Size Push Disks Included
- Replacement Parts Available
