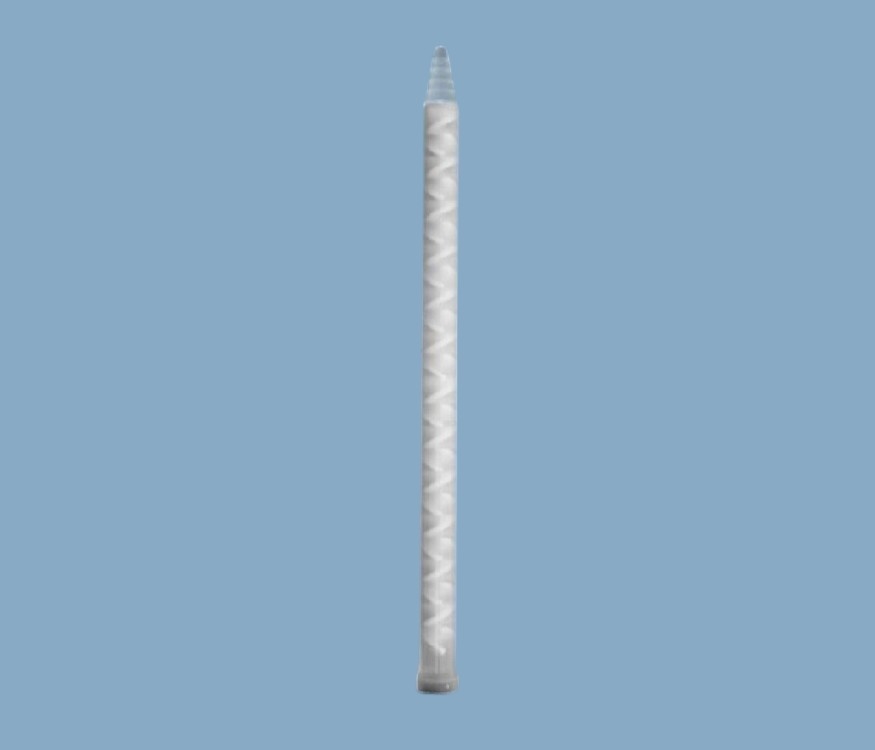

Mix Nozzle 13mm ID x 24 EL MCH 13-24T pk/100
Product Code: MC13-24
Price: £140.00
Description
Bell mouth inlet, helical static mixer for 200ml, 400ml and 600ml 1:1 and 2:1 ratio dual component epoxy type cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 13mm ID x 24 mixing elements. Pricing is for a sealed pack of 100 nozzles.
Part ID: MCH 13-24T, 102437
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 13.0mm
Outer Diameter: 17.0mm
Elements: 24
Length: 293mm
Retained Volume: 27.3ml
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac MedMix
Product Datasheet
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
