Mix Nozzle 10mm ID x 32 EL MCH 10-32T pk/100
Product Code: MC10-32
Price: £168.00
Description

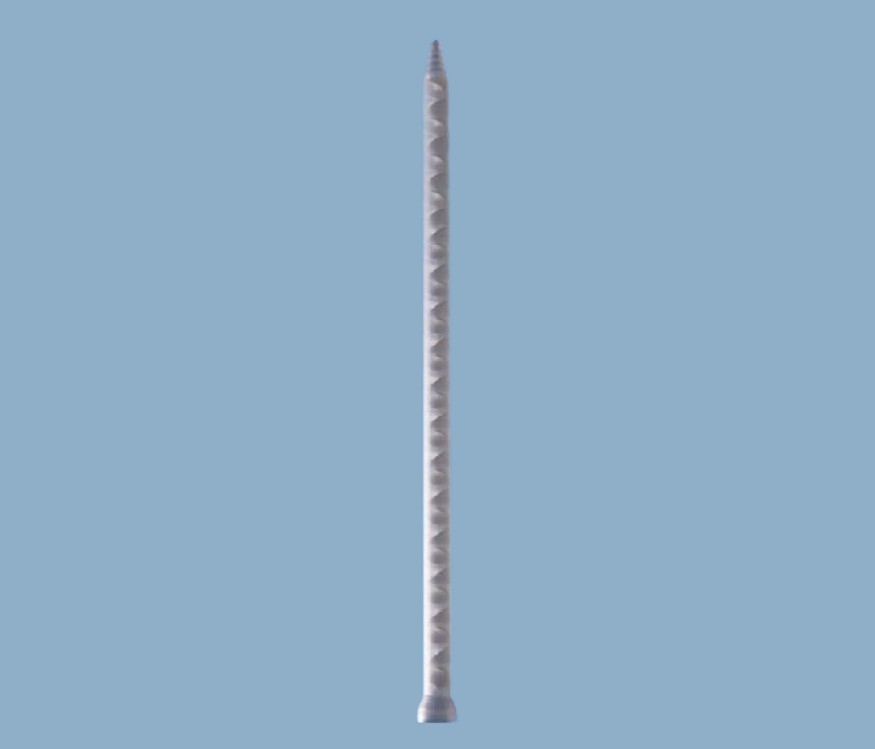

Bell mouth inlet, helical static mixer for 200ml and 400ml dual component epoxy type cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer tip adapter and any luer lock needle tips.
These mixer nozzles are suitable for all two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 10mm ID x 32 mixing elements.
Supplied in a sealed pack of 100 nozzles. For use with 200ml, 400ml and 600ml dual cartridges with a 1:1 or 2:1 ratio.
Part ID: MCH 10-32T, 102433
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 10.0mm
Outer Diameter: 14.0mm
Elements: 32
Length: 352mm
Retained Volume: 21.8 ml
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
These mixer nozzles are suitable for all two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 10mm ID x 32 mixing elements.
Supplied in a sealed pack of 100 nozzles. For use with 200ml, 400ml and 600ml dual cartridges with a 1:1 or 2:1 ratio.
Part ID: MCH 10-32T, 102433
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 10.0mm
Outer Diameter: 14.0mm
Elements: 32
Length: 352mm
Retained Volume: 21.8 ml
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
