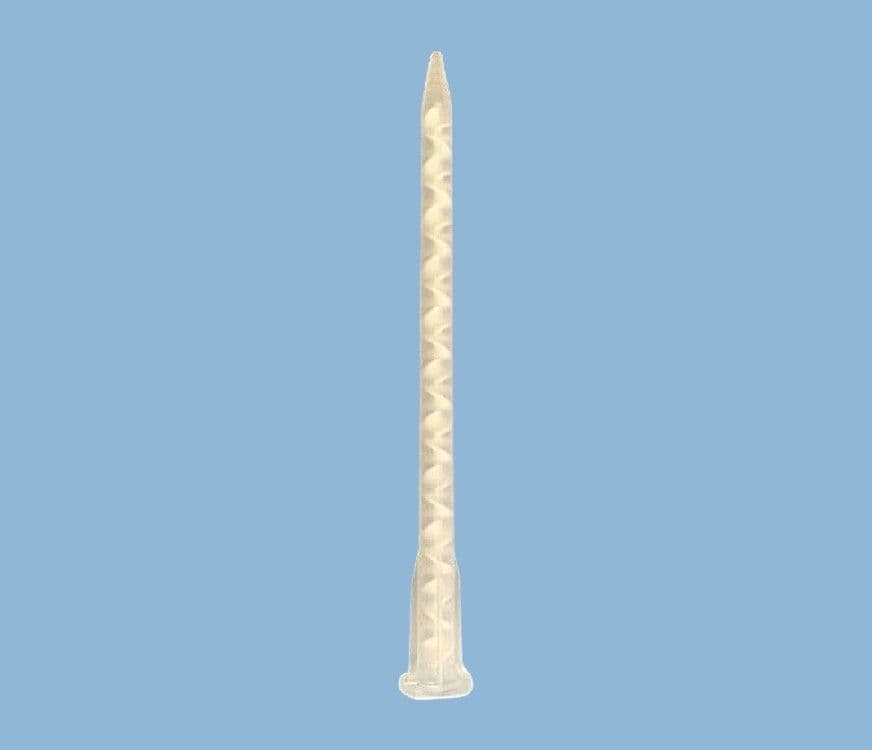

Mix Nozzle 6.3mm ID x 21 EL MAH06-21T pk/100
Product Code: MA6.3-21S
Price: £48.00
Description
Static nozzles for thorough adhesive components mix during dispensing for optimal adhesive consistency and bond strength. Recommended use with adhesive cartridges. Twist and lock onto adhesive cartridge for secure flow under pressure.
Bayonet inlet, helical static mixer nozzle for 50ml, 75ml and 100ml dual component cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. Supplied in a sealed pack of 100.
All items are industrial grade safe and silicone free. 6.3mm ID x 21 mixing elements. Use with 50ml, 75ml, 100ml A-System 1:1 and 2:1 ratio bayonet style dual cartridges.
Part ID: MA6.3-21S - MAH 06-21T - 102380
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.3mm
Outer Diameter: 9mm
Length: 153mm
Tip Outlet: 1.5mm
Elements: 21
Retained Volume: 3.57ml
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Paack Size: 100
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Bayonet inlet, helical static mixer nozzle for 50ml, 75ml and 100ml dual component cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates. These mixer nozzles are suitable for all two-component materials. They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. Supplied in a sealed pack of 100.
All items are industrial grade safe and silicone free. 6.3mm ID x 21 mixing elements. Use with 50ml, 75ml, 100ml A-System 1:1 and 2:1 ratio bayonet style dual cartridges.
Part ID: MA6.3-21S - MAH 06-21T - 102380
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.3mm
Outer Diameter: 9mm
Length: 153mm
Tip Outlet: 1.5mm
Elements: 21
Retained Volume: 3.57ml
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Paack Size: 100
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 50/75ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
