Mix Nozzle 5.4mm ID x 07 EL MAH 05-07T pk/100
Product Code: MA5.4-07S
Price: £47.00
Description

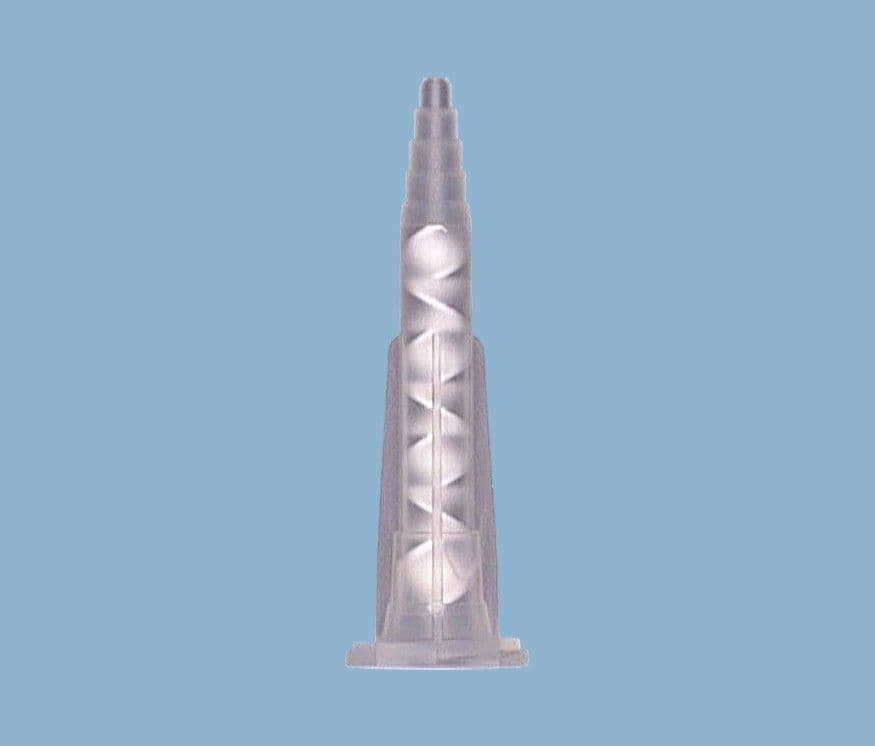

Bayonet inlet, helical
static mixer nozzle for 50ml, 75ml and 100ml 1:1 and 2:1 mix ratio dual component cartridges.
Stepped outlet for precision that can also be cut back to increase orifice size and
increase flow rates. These mixer nozzles are suitable for all
two-component materials. They have white elements and are constructed
of high grade polypropylene. High quality mixer nozzles for use with
twin cartridges.
Supplied in a sealed pack of 100 nozzles.
All items are industrial grade safe and silicone free. Use with bayonet style dual cartridges.
Part ID: MA5.4-07S - MAH 05-07T - 102369
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 5.4mm
Outer Diameter: 8mm
Total Length: 56mm
Tip Outlet Diameter: 1.5mm
Number of Mix Elements: 7
Retained Volume: 0.8ml
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac (MedMix)
About MIXPAC MAH, MAQ Mixers
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
All items are industrial grade safe and silicone free. Use with bayonet style dual cartridges.
Part ID: MA5.4-07S - MAH 05-07T - 102369
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 5.4mm
Outer Diameter: 8mm
Total Length: 56mm
Tip Outlet Diameter: 1.5mm
Number of Mix Elements: 7
Retained Volume: 0.8ml
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Sulzer Mixpac (MedMix)
About MIXPAC MAH, MAQ Mixers
MIXPAC MAH and MIXPAC MAQ mixers are used with MIXPAC A-System 50ml (and 75ml/ 100ml with 1:1 ratio) two-part cartridges, and are compatible with many other systems. They have a simple twist lock bayonet fitting for mounting on the cartridge. The mixers first element automatically aligns itself with the dividing wall of the MIXPAC cartridge, separating Part A and Part B, preventing cross-over at the interface of the cartridge.
They are available in round/ helical version and square QUADRO versions. There are versions with stepped outlet tips, tapered outlet, straight outlet and luer slip outlet tips.
MIXPAC MAH and MAQ static mixing nozzles are used to dispense two-part adhesives and materials such as epoxy, polyurethane, acrylic, doming resins and MMA methacrylate. These mixers were formerly sold under the Sulzer Mixpac brand name. Adhesive Dispensing Ltd have been distributing Medmix products for over 15 years.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 50/75/100ml 1:1/2:1 cartridges
- Silicone-free Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
