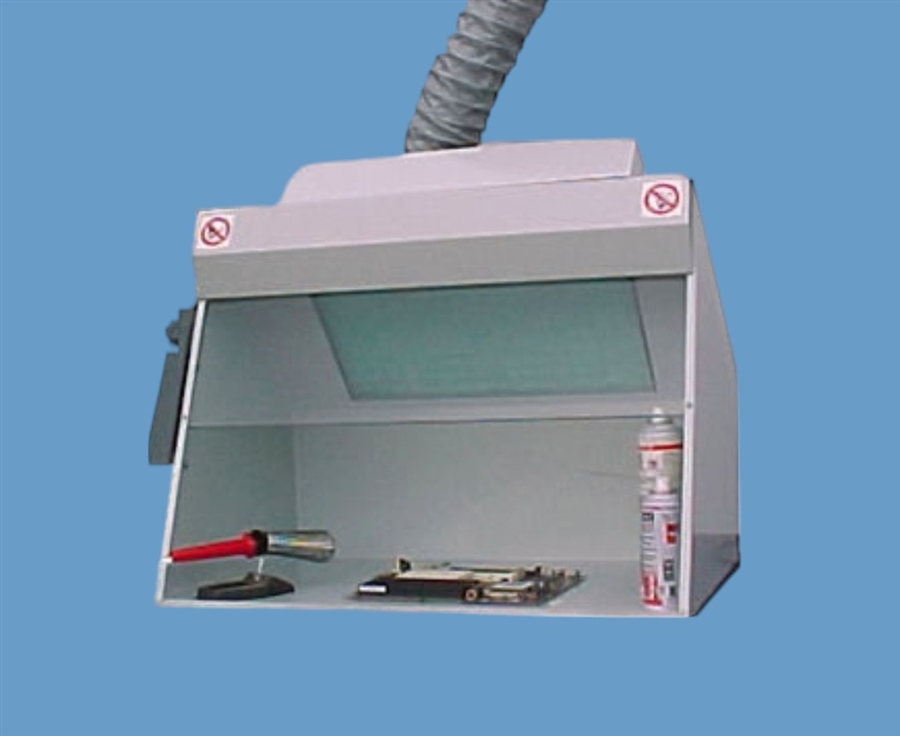

T660H-D Fume Extraction Cabinet
Product Code: T660H-D
Price: £1,297.80
Description
The T660H-D is our flagship hood mounted extract-to-atmosphere cabinet. Its been designed to capture, contain, filter and expel harmful fumes and contaminants within electronic design & rework, dental/medical labs, pharmaceutical labs and classroom environments.
Whats included with the T660H-D Extraction Cabinet?
Filter unit with centrifugal fan
Hood Enclosure
Hood Light
Polycarbonate hinged front panel
Particulate filter
2 mtrs x 100mm dia. flexi-duct
Power Lead
Data/Warranty Booklet
Filter unit with centrifugal fan
Hood Enclosure
Hood Light
Polycarbonate hinged front panel
Particulate filter
2 mtrs x 100mm dia. flexi-duct
Power Lead
Data/Warranty Booklet
What can the T660H-D hood mounted extract-to-atmosphere cabinet be used for?
The T660H-D is ideal for use with spray adhesives, conformal coatings and paints, Cyanoacrylate adhesives, monomers, hazardous powders and particulates, resins, sealants, solders, light grinding particles, organic solvents and cleaners etc.
The T660H-D is ideal for use with spray adhesives, conformal coatings and paints, Cyanoacrylate adhesives, monomers, hazardous powders and particulates, resins, sealants, solders, light grinding particles, organic solvents and cleaners etc.
All handling and/or use of potentially harmful substances is carried out within the hood enclosure in front of the intake filter area. For artwork applications, standard A2 drawing board can be placed within the hood enclosure. The board fits at an angle for efficient over-spray capture.
These fume cabinets are designed for immediate operator protection whereby large particulates (> 5 microns) are filtered out and fine particulates (<5 microns) together with odours, gases, vapours and fumes within the hood enclosure are exhausted to atmosphere via the flexi-duct(s).
These fume cabinets are designed for immediate operator protection whereby large particulates (> 5 microns) are filtered out and fine particulates (<5 microns) together with odours, gases, vapours and fumes within the hood enclosure are exhausted to atmosphere via the flexi-duct(s).
The Flexi-duct can be fixed to a standard domestic vent or simply placed through a partially open window to facilitate portability and/or convenience.
Specifications
Weight: 56 kg
Dimensions: 670x525x450 (wxhxd) [internal] 680x600x450 (wxhxd) [overall]
Description: Steel construction finished in grey - fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting - particulate filter - centrifugal blower, external rotor motor type, brushless, UL, VDE and CSA approved - sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia.
Air Volume at Free Air: 355 m3/hr
Ave. Air Velocity at Filter Face: 0.60 m/sec
Ave. Air Velocity at Hood Face@ 0.55 m/sec
Fan Motor Spec: 240V 50Hz 40W, 115V 60Hz 45W
Filters: Standard Particle Filter - IFA3P
Noise Level LAeq dB(A): 58 db(A)
Weight: 56 kg
Dimensions: 670x525x450 (wxhxd) [internal] 680x600x450 (wxhxd) [overall]
Description: Steel construction finished in grey - fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting - particulate filter - centrifugal blower, external rotor motor type, brushless, UL, VDE and CSA approved - sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia.
Air Volume at Free Air: 355 m3/hr
Ave. Air Velocity at Filter Face: 0.60 m/sec
Ave. Air Velocity at Hood Face@ 0.55 m/sec
Fan Motor Spec: 240V 50Hz 40W, 115V 60Hz 45W
Filters: Standard Particle Filter - IFA3P
Noise Level LAeq dB(A): 58 db(A)
Key Features
2mtrs flex-duct
Clear polycarbonate panel for protection
Hood lighting
2mtrs flex-duct
Clear polycarbonate panel for protection
Hood lighting
All filtration and extraction systems carry a 2 Year guarantee, are quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.
High Quality Filters from Adhesive Dispensing Ltd
The particulate (intake) filter is a three stage graduated fibre filter with a high dust holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-duct, vastly reduces and/or eliminates operator exposures to potentially hazardous substances.
The particulate (intake) filter is a three stage graduated fibre filter with a high dust holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-duct, vastly reduces and/or eliminates operator exposures to potentially hazardous substances.
Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.
Features
- Easy setup
- UK manufactured
- Cabinet version
- Extracts to atomsphere
- High suction force
- Suitable for lead-free solder fumes
- Universal power: 230VAC, 50-60Hz
- CE certified.
