Advanced Digital Timed Valve Controller TS500R
Product Code: TS500R
Price: £0.00
Description
September 2020 - Please note - this product has recently been made obsolete by the manufacturer and existing stocks we held are now gone. The direct replacement digital valve controllers for this is the TS550R for all standard pneumatic valves, TS560R for spray valves, TS570R for auger rotary valves and TS580R for PC Pump valves.
The TS500R is a universal valve controller for all metering valves including pinch, diaphragm, needle, spool, piston, spray and auger. It can run at up to 900 cycles per minute, it has an LCD display, memory storage, 0.008 to 60 second timer, +/- 0.001% repeat tolerance, low pressure alarm feature, universal voltage, I/O connector.

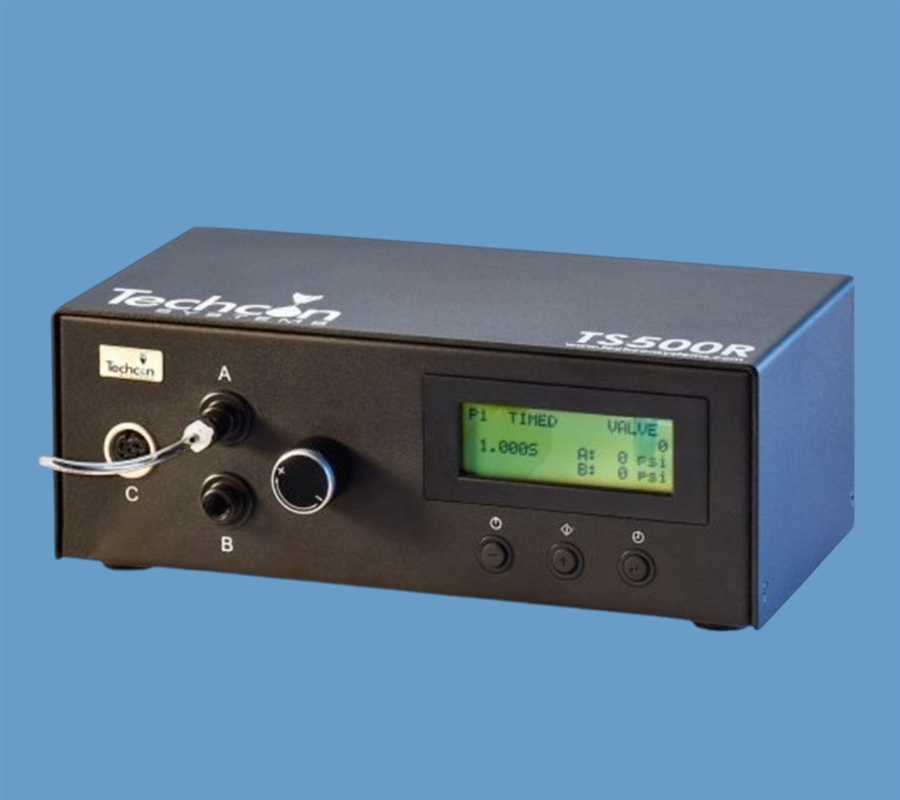

The display is a clear 20 x 4 segment LCD and shows time and pressure settings in both PSI and BAR. Up to 10 individual program settings can be stored. The TS500R features an adjustable low pressure alarm for higher levels of control. With a universal power supply, it is a fully 'plug and play' system and can be used immediately, anywhere in the world, with its accompanying tools and accessories.
This system uses a highly responsive air pressure management system, coupled with a digital timing circuit and display, to provide consistent, repeatable control over all types of valves .
Part ID: TS500R
Timer: 0.008 - 60 seconds
Output Pressure: Up to 100 psi
Input Pressure: 70-100 psi
Size: 10.0 W x 7.5 D x 4.0 H Inches (254mm x 191mm x 102mm)
Weight: 2.6kg (5.8lb)
Input Voltage: 100-240 V AC
Warranty: 1 Year
Cycle Rate: Up to 900 cycles/minute
Timing Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL
The TS500R is a universal valve controller for all metering valves including pinch, diaphragm, needle, spool, piston, spray and auger. It can run at up to 900 cycles per minute, it has an LCD display, memory storage, 0.008 to 60 second timer, +/- 0.001% repeat tolerance, low pressure alarm feature, universal voltage, I/O connector.
The display is a clear 20 x 4 segment LCD and shows time and pressure settings in both PSI and BAR. Up to 10 individual program settings can be stored. The TS500R features an adjustable low pressure alarm for higher levels of control. With a universal power supply, it is a fully 'plug and play' system and can be used immediately, anywhere in the world, with its accompanying tools and accessories.
Part ID: TS500R
Timer: 0.008 - 60 seconds
Output Pressure: Up to 100 psi
Input Pressure: 70-100 psi
Size: 10.0 W x 7.5 D x 4.0 H Inches (254mm x 191mm x 102mm)
Weight: 2.6kg (5.8lb)
Input Voltage: 100-240 V AC
Warranty: 1 Year
Cycle Rate: Up to 900 cycles/minute
Timing Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Adjustable 0-100 psi air regulator
- 0.008 to 60 second adjustable timer
- Controls all valve types
- LCD large display
- Shot counter display
- Footswitch and I/O connector
- Complete with accessory and airline kit
