SA7989 assorted component kit

Description

Hand operated manual syringe assembly with luer lock tip attachment supplied with stainless steel blunt end dispense tips 0.5" long. A multi purpose evaluation pack of clear 3ml/ 3cc manual syringes with luer lock dispensing tips. Clear syringe barrel includes plunger rod and rubber piston. Luer lock twist-on tip attachment. Tips are 0.5" long blunt end small bore 21, 22 and 23 gauge. Non sterile manual 3cc/ 3ml size syringe barrel assembly.

Natural (clear) barrel high density polypro. Luer lock for twist on attachment of needle tips. Syringe assembly incorporates the 400 series syringe barrel, 400 series plastic plunger rod and 400 series rubber piston. These syringes are industry compliant low friction polypropylene. Suited for use with most fluids, adhesives, solvents, primers, inks, paints, lubricants and activators. Clear barrel without graduations. SE series general purpose tips are designed to work with all luer lock and luer slip syringe barrels and fittings. They are fully compatible with most fluids, adhesives, solvents and chemicals.

Tips are colour coded for gauge size. The tip features a slightly rounded internal design where the shaft meets the hub to improve fluid flow and reduce flow restriction. This allows for a lower pressure to be used for dispensing of liquids and pastes. Please note that these items are shipped in sealed and labelled packs direct from stock.

Part ID: SA7989
Materials: Polypropylene/ Stainless Steel
Syringe Length: 2.94" - 74.67mm
Syringe Outer Diameter: 0.43" - 10.92mm
Syringe Inner Diameter: 0.35" - 8.89mm
Needle Tip Tube Length: 0.50" - 12.5mm
Connection: Luer Lock

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Precision burr free tubing on tips
Luer lock syringes for twist on secure tip attachment
Unmarked syringe barrels
Industrial style syringes - not medical
Double helix luer lock needle tips blunt end
Colour coded tip hubs
For use all fluids, adhesives and solvents

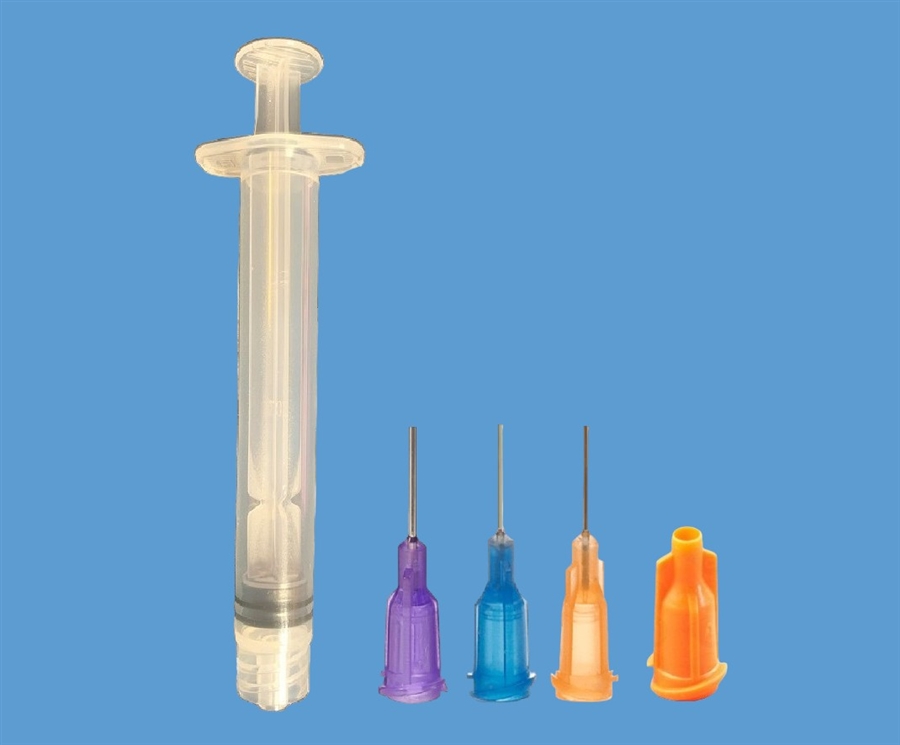

Manual 3ml Luer Lock Syringe/Cap/Tip Kit SA7989
