10 Litre Pressure Pot 0-60 psi regulator # TS1210
Product Code: TS1210
Price: £445.85
Description

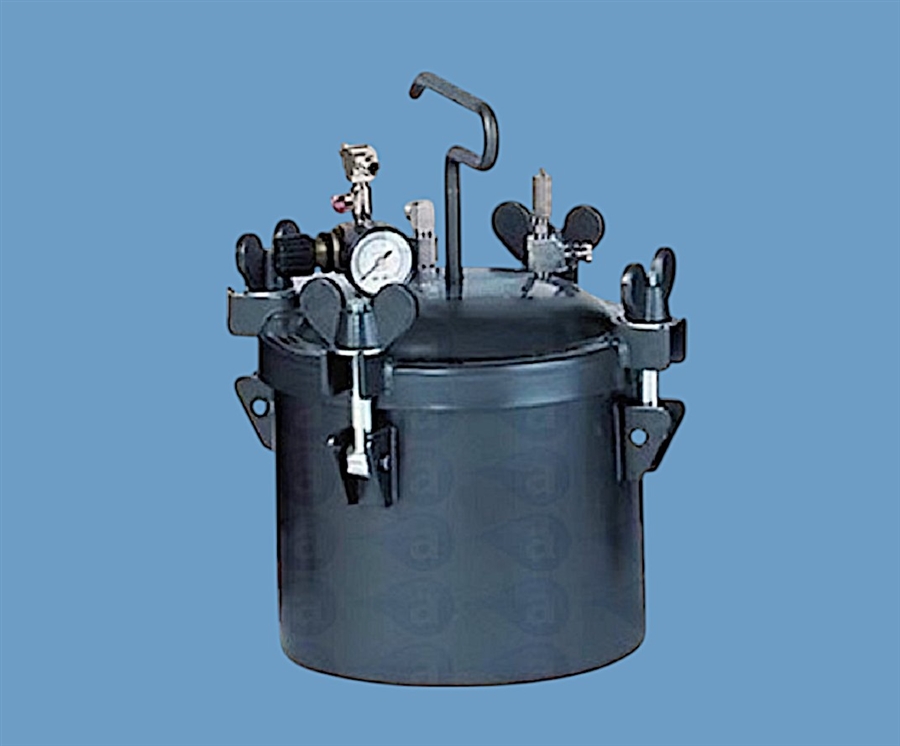

The TS1210 pressure pot is designed to accommodate paints, inks, lubricants, UV cure, solvents, paints and oils. Pot accommodates 1/4" OD feed tubing with stainless steel compression fittings for a fluid path from the reservoir inside the pot to the metering valve. Airtight seals ensure no leakage problems. Built in adjustable 0 - 60 psi air regulator and gauge. Lid removes for easy access. Handles fluids with a viscosity up to approx. 30,000 cps. Air port quick connect fitting and top ported outlet. Steel body with aluminium inner liner.
This tank should not be used with reactive adhesive such as cyanoacrylates as some of the tanks wetted parts are metal which could become clogged. For dispensing CAs, please select 5 litre or smaller tanks. Only use this tank with liquids that do not react to contact with metals such as inks, paints, solvents, PVA glues, UV cure, etc. This tank does not include agitation.
Part ID: TS1210
Weight: 11.5 kg
Viscosity Range: Liquids up to 40,000 CPS
Max Fluid Pressure: 60 psi (4 Bar)
Air Inlet: 1/4" thread inlet
Material Outlet: 1/4" OD tube
Materials: Steel with aluminium inner liner
Warranty: 1 Year
Features
- Fluid strainer
- High quality material and taps
- 0-60 psi adjustable regulator and gauge
- Either 1/4" tubing or female luer lock fluid lines
- 6mm push fit air in
- 1 Year Warranty
