7.6 Litre Pressure Pot 0-100 PSI AD7600ML-LT
Product Code: TS1262
Price: £945.00
Description

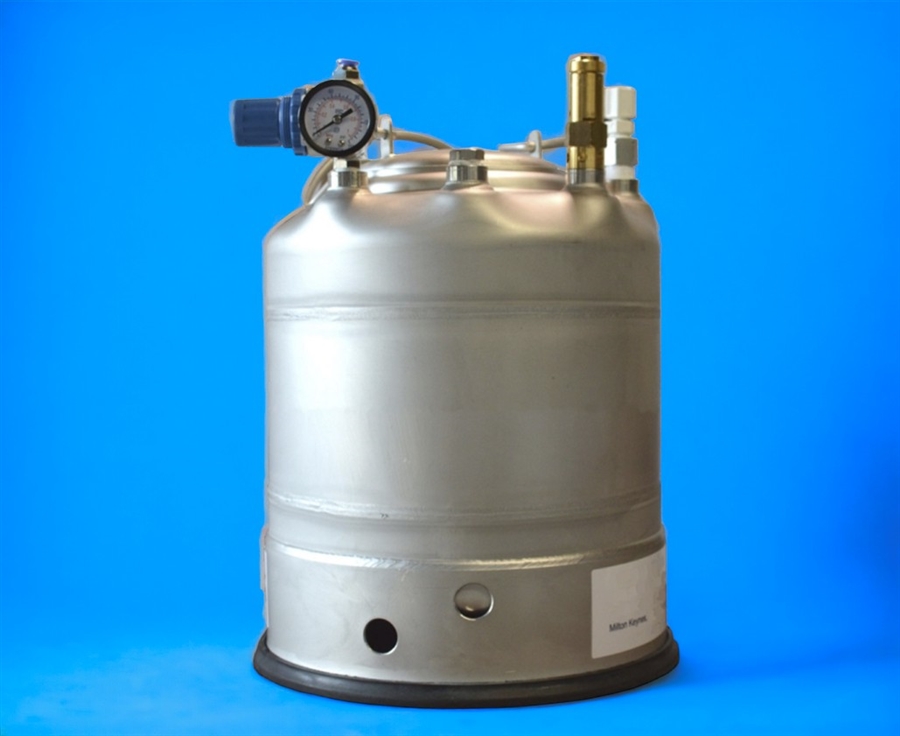

The AD7600ML-LT pressure pot is designed to accommodate most low to medium fluids, adhesives, solvents and UV's. Pot accommodates 1/4" OD feed tubing with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the metering valve. Airtight seals ensure no leakage problems. Built in adjustable 100 psi air regulator and gauge. Wide open mouth for easy access. Handles fluid viscosity up to 35,000 cps. Air port quick connect fitting and top ported outlet. Type 304 stainless steel. Capacity is 2 US gallons. All tanks include an adjustable regulator with gauge.
Part ID: AD7600ML-LT
Viscosity Range: Liquids up to 35,000 CPS
Max Fluid Pressure: 100 psi (6.7 Bar)
Air Inlet: 1/4" Thread Inlet (Female) - 6mm Tube Push-in Fitting also supplied
Material Outlet: 1/4" OD or 3/8" OD
Materials: Type 304 Stainless Steel
Weight: 5.50kg
Height: 372.11mm - Diameter: 233mm
Internal Size: Height: 295.27mm - Diameter: 229mm
Commodity Code: 90289090
Warranty: 1 Year
Part ID: AD7600ML-LT
Viscosity Range: Liquids up to 35,000 CPS
Max Fluid Pressure: 100 psi (6.7 Bar)
Air Inlet: 1/4" Thread Inlet (Female) - 6mm Tube Push-in Fitting also supplied
Material Outlet: 1/4" OD or 3/8" OD
Materials: Type 304 Stainless Steel
Weight: 5.50kg
Height: 372.11mm - Diameter: 233mm
Internal Size: Height: 295.27mm - Diameter: 229mm
Commodity Code: 90289090
Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for use with most liquids
- Wide mouth
- 0-100 psi adjustable regulator and gauge
- Either 1/4" tubing or female luer lock fluid lines
- 6mm push fit air in
- 1 Year Warranty
