TS1258 Pressure Pot Tank 5 Litre Techcon Adhesive Dispensing Ltd

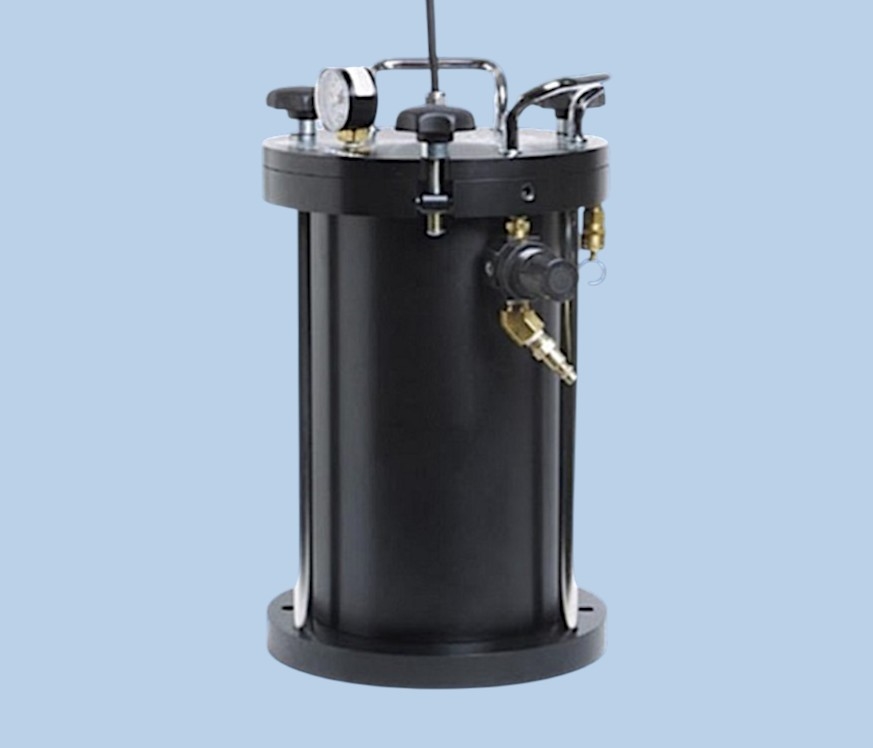

5 Litre Pressure Pot 0-100 psi regulator TS1258

Product Code: TS1258

Price: £2,705.00

Description

The TS1258 Pressure Pot (high pressure up to 100 psi) is designed to accommodate all solvents and adhesives, as well as cyanoacrylates and UV's. It will also accommodate black fittings and tubing in 1/4, 3/8, and 4 mm, with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use.

Airtight seals ensure no leakage or air entrapment problems. 100 psi operating pressure easily handles fluid with viscosity up to 50,000 CPS. This tank is suitable for dispensing most fluids including Cyanoacrylate adhesives.

Disposable polyethylene dip tube can be quickly changed. The pressure gauge and pressure regulator are located on top for easy reading and access. This pressure pot includes 1/4" and 3/8" fluid line connector kits and fittings.

Material: Anodized Aluminium
Colour: Black
Size: 9.3 x 11.2 x 15.1 (236 x 284 x 384mm )
Chamber: 6.1" ID. x 11.0 Inch H (155 x 279mm)
Weight: 9.5kg (21 lbs)
Max Pressure: 100 psi (6.9 BAR)
Details: CE Approved
Warranty: 12 Months

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
