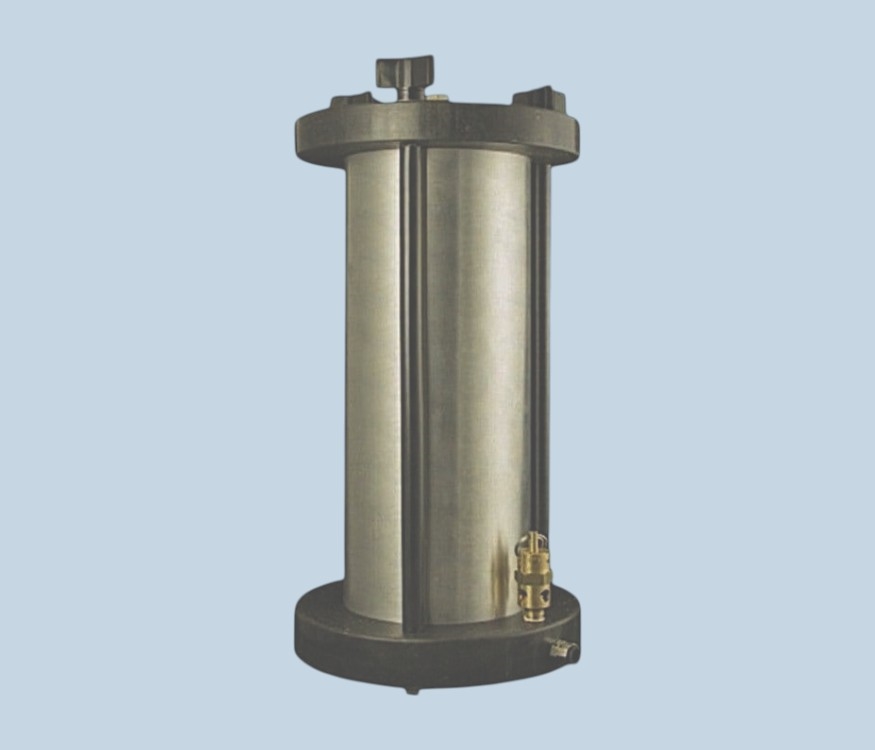

1 Litre Pressure Pot Reservoir TS1251
Product Code: TS1251
Price: £545.00
Description
The TS1251 pressure pot (max pressure 75 psi) is designed to accommodate all solvent and epoxy fluids, as well as cyanoacrylates and UV's. Pot accommodates 6mm OD feed tubing with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the metering valve. Also supplied with a 1/8" male luer lock fitting to accept our standard fluid lines.
Airtight seals ensure no leakage or air entrapment problems. Ideal for use with bottles of cyanoacrylate and anaerobic adhesives. 75 psi safety pressure easily handles fluid with viscosity up to 25,000 cps. Air port quick connect fitting and top ported outlet. Also accepts adhesive bottles 250gm and 500gm or 1lb. Black and silver anodised aluminium. Use with a regulated air supply. Includes: TSD800-6EL (regulator & pressure gauge, 1/8 Inch elbow to 6mm push-fit), material tubing: 6mm natural PE (2m length) and 6mm black PE (2m length).
Colour: - Silver/ Black
Outer Size: - 6.25" W x 12.50" High (158.75mm x317.5mm)
Inner Chamber: - 3.75" W x 9.63" High (95.25mm x 244.6mm)
Weight: - 2.06kg
Max Fluid Viscosity: - Liquids up to 25,000 CPS
Max Pressure: - 75 PSI
Air Inlet: - 6mm Push Fit
Material Outlet: - 6mm OD Metal Tube Connector
Materials: - Aluminium Body and 6-6 Nylon (top and base)
Warranty: - 1 Year
Commodity Code: 84678900
Data Sheet PDF
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Airtight seals ensure no leakage or air entrapment problems. Ideal for use with bottles of cyanoacrylate and anaerobic adhesives. 75 psi safety pressure easily handles fluid with viscosity up to 25,000 cps. Air port quick connect fitting and top ported outlet. Also accepts adhesive bottles 250gm and 500gm or 1lb. Black and silver anodised aluminium. Use with a regulated air supply. Includes: TSD800-6EL (regulator & pressure gauge, 1/8 Inch elbow to 6mm push-fit), material tubing: 6mm natural PE (2m length) and 6mm black PE (2m length).
Colour: - Silver/ Black
Outer Size: - 6.25" W x 12.50" High (158.75mm x317.5mm)
Inner Chamber: - 3.75" W x 9.63" High (95.25mm x 244.6mm)
Weight: - 2.06kg
Max Fluid Viscosity: - Liquids up to 25,000 CPS
Max Pressure: - 75 PSI
Air Inlet: - 6mm Push Fit
Material Outlet: - 6mm OD Metal Tube Connector
Materials: - Aluminium Body and 6-6 Nylon (top and base)
Warranty: - 1 Year
Commodity Code: 84678900
Data Sheet PDF
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 75 psi - Variable operating pressure
- Fluid Outlet Port - On the lid for easy access
- Two Handles - For easy removal of lid
- Three knobs to open/close lid - For positive and uniform seal
- Relief Valve with Pull Ring - To depressurise after usage
- Disposable polyethylene - Fluid lines can be changed quickly
- Ferrule - Disposable with tubing eliminates cleanup
- Hose Kit - Supplied with tank
- Tube Sizes - 1/4", 3/8" and 4mm fittings available
